ZQX-5 GMP-Designed Automatic Cleaning Unit Widely Used in Pharmaceutical Food and Fine Chemical Industries
- Wonsen
- China
- 120 days
- Strong
The equipment can be equipped with three water pipe inlets for users to select. The water outlets can be connected to tees or crosses. With convenient and easy operation, it can be used for several machines simultaneously.
1 Application

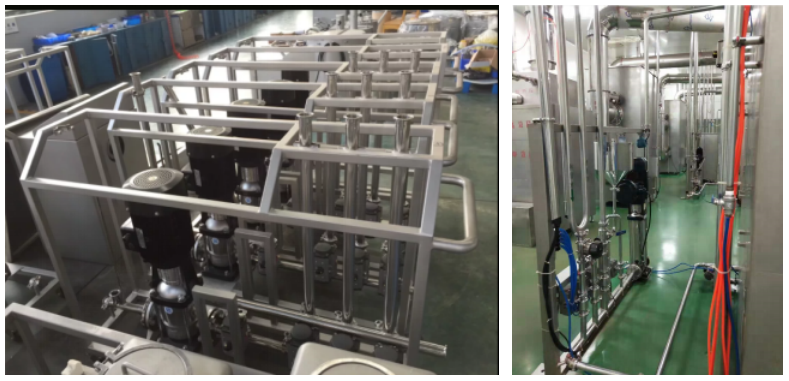

The machine is mainly used for online cleaning of equipment in the production process of solid preparations, used together with equipment such as fluid bed machine, coating machine and wet mixing granulator. It is also suitable for the cleaning of industrial equipment such as IBC tanks in pharmaceutical, food, fine chemicals, etc. It is a cleaning equipment designed and manufactured in accordance with GMP requirements.

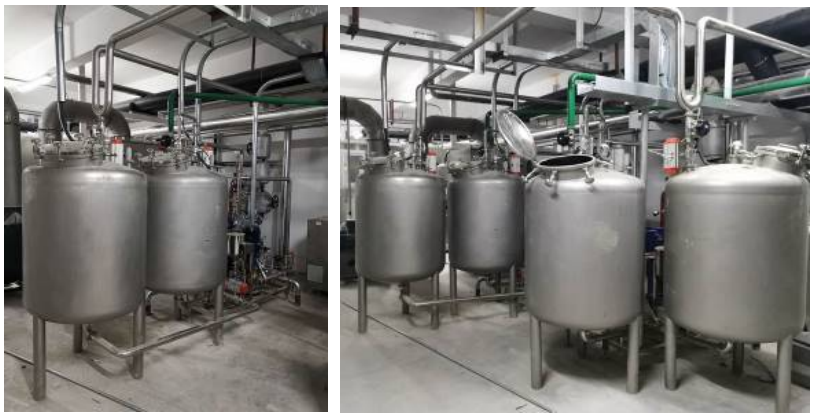

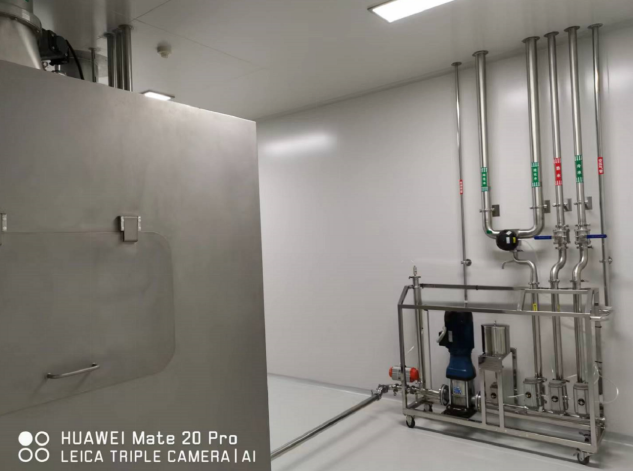

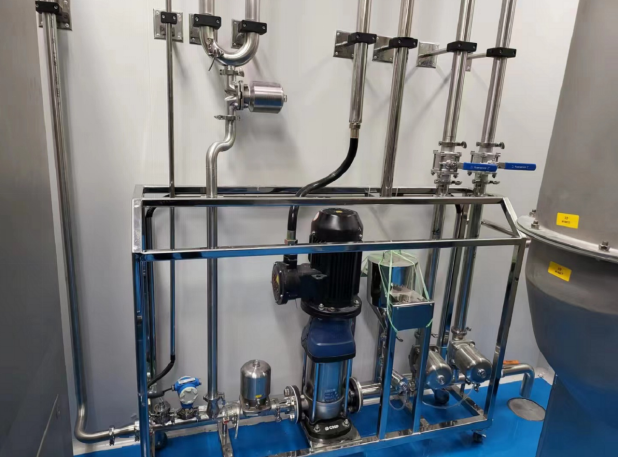

CIP station cases
2 Work principle

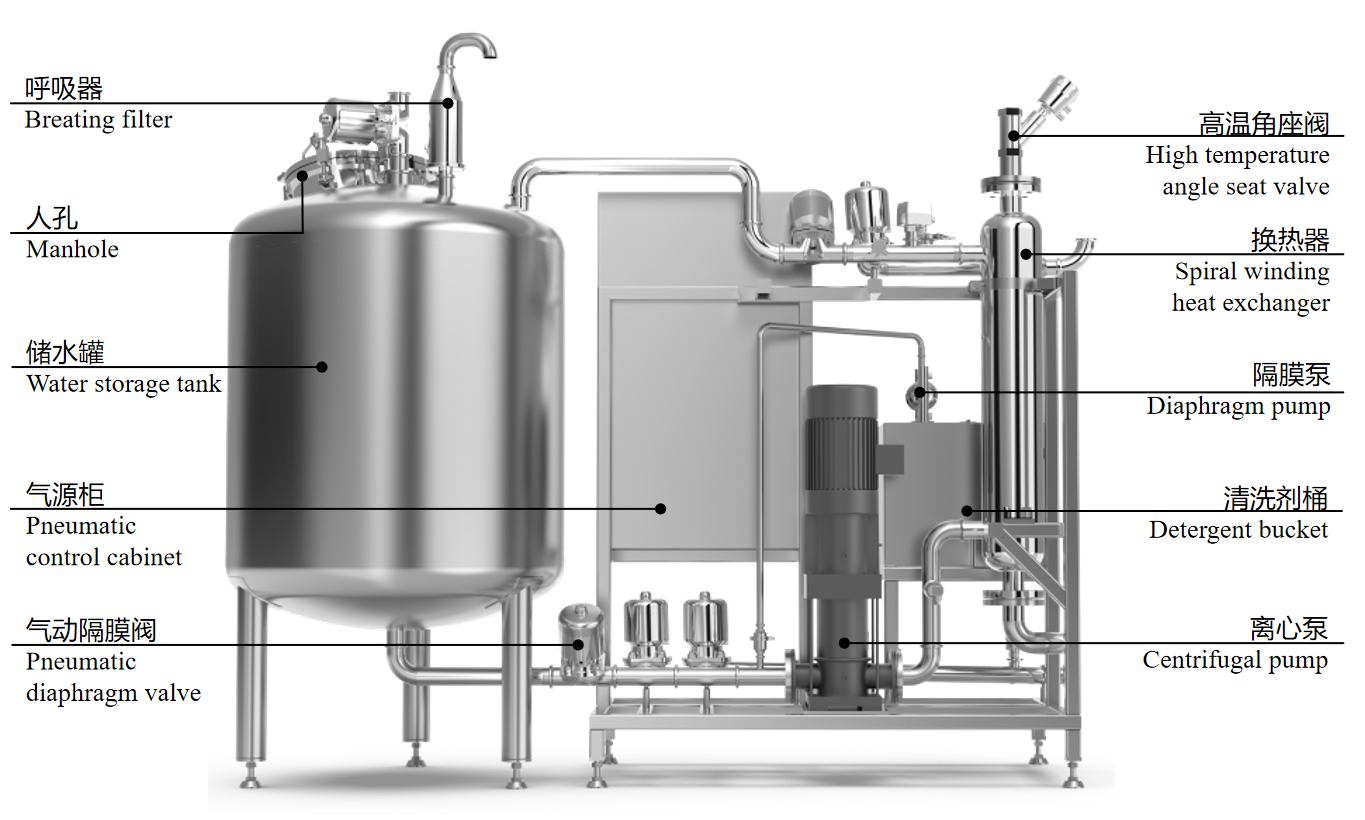

The machine is composed of booster pump, option heat exchanger, water storage tank, control system and so on, and the various water source are pressurized by a booster pump to clean the inner surface of the device, Hot water source is generated by tap water heated by the heat exchanger. The cleaning agent is controlled by the valve to add the amount, entering to the booster pump after mixing. The cleaning procedure is set according to the process requirements. After the cleaning is completed, the compressed air is blown according to the program to dry the water in the pipeline, and the cleaned equipment is dried for future production.
3 Features
1.The equipment can be equipped with three water pipe inlets for users to select. The water outlets can be connected to tees or crosses. With convenient and easy operation, it can be used for several machines simultaneously.
2.The equipment is equipped with a cleaning nozzle that can turn for 360° and a high pressure water gun. The procedure of barrel cleaning can be completed through the operation by just one person.
3.The equipment is installed with castors at its bottom to facilitate its movement.
4.It is featured by concise structure and easy installation and disassembly.
4 Options
Stainless steel cover for washing station (option)

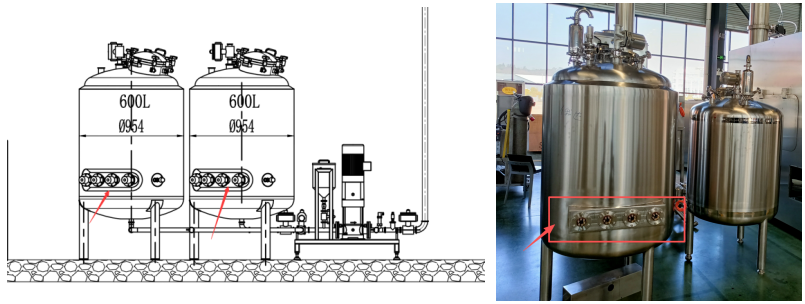

Water storage tank for washing station(option)

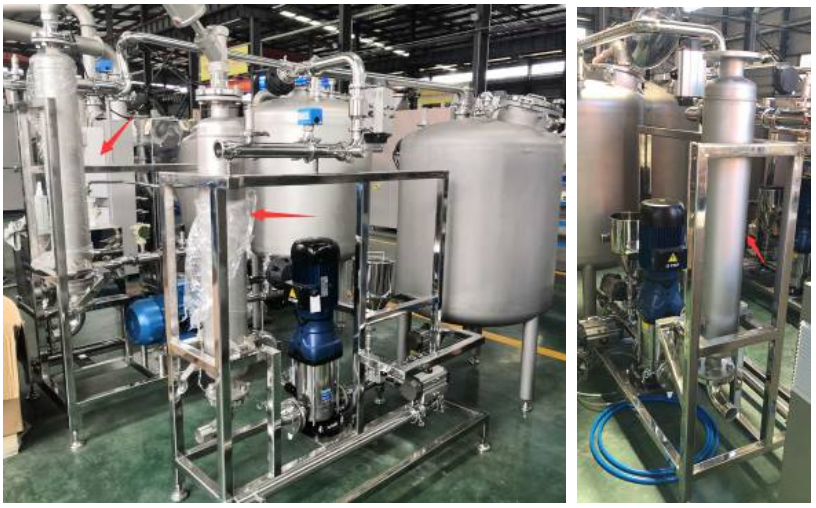

SWHE：spiral winding heat exchanger for washing station(option)
CIP station with electric heating exchanger (option)
5 Technical parameter
No. | Name | Parameter | |
1 | Pump motor power | 1.5kW (standard vertical pump) 4kW (option sanitary pump) | |
2 | External condition | Power supply | 3PH/380V/50Hz |
Compressed air pressure | 0.6～0.8 MPa | ||
Compressed air consumption※ | 2 m3/min | ||
Compressed air tube | DN25*K50.5 | ||
Steam pressure | 0.3～0.5 MPa | ||
Steam consumption※ | 800kg/h (0 if electric heating is used) | ||
Steam inlet tube | DN50 (standard flange) | ||
Water pressure | 0.3～0.6 MPa (standard vertical pump) 0.3～0.5 MPa (option sanitary pump) | ||
Max liquid consumption※ | 5m3/h | ||
Water connection pipe | DN40*K50.5 | ||
3 | Referenced weight※ | 895kg | |

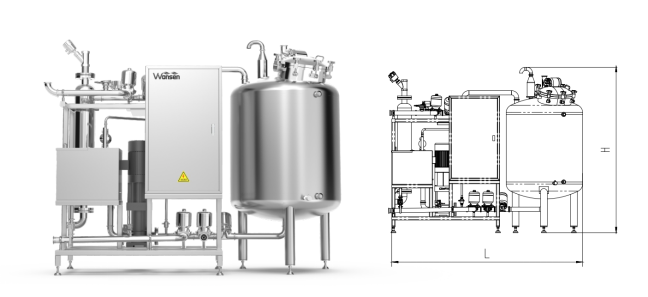

4 | Referenced dimension size※ | According to the actual drawing | |
5 | "※" is a reference value, consumption, yield, net weight of equipment, dimensions and other standards for reference only, the actual parameters and materials, configuration, process related. | ||
