ZLXHD-200 Multifunctional Bin Cleaning Machine Hopper Washing Machine with Big Sight Window for Better Viewing
- Wonsen
- China
- 120 days
- Strong
The equipment is a machine integrating cleaning, drying and cooling. With high degree of automation and simple operation, it adopts HMI and PLC control during the whole course, which can comply 21CFR Part11 requirements.

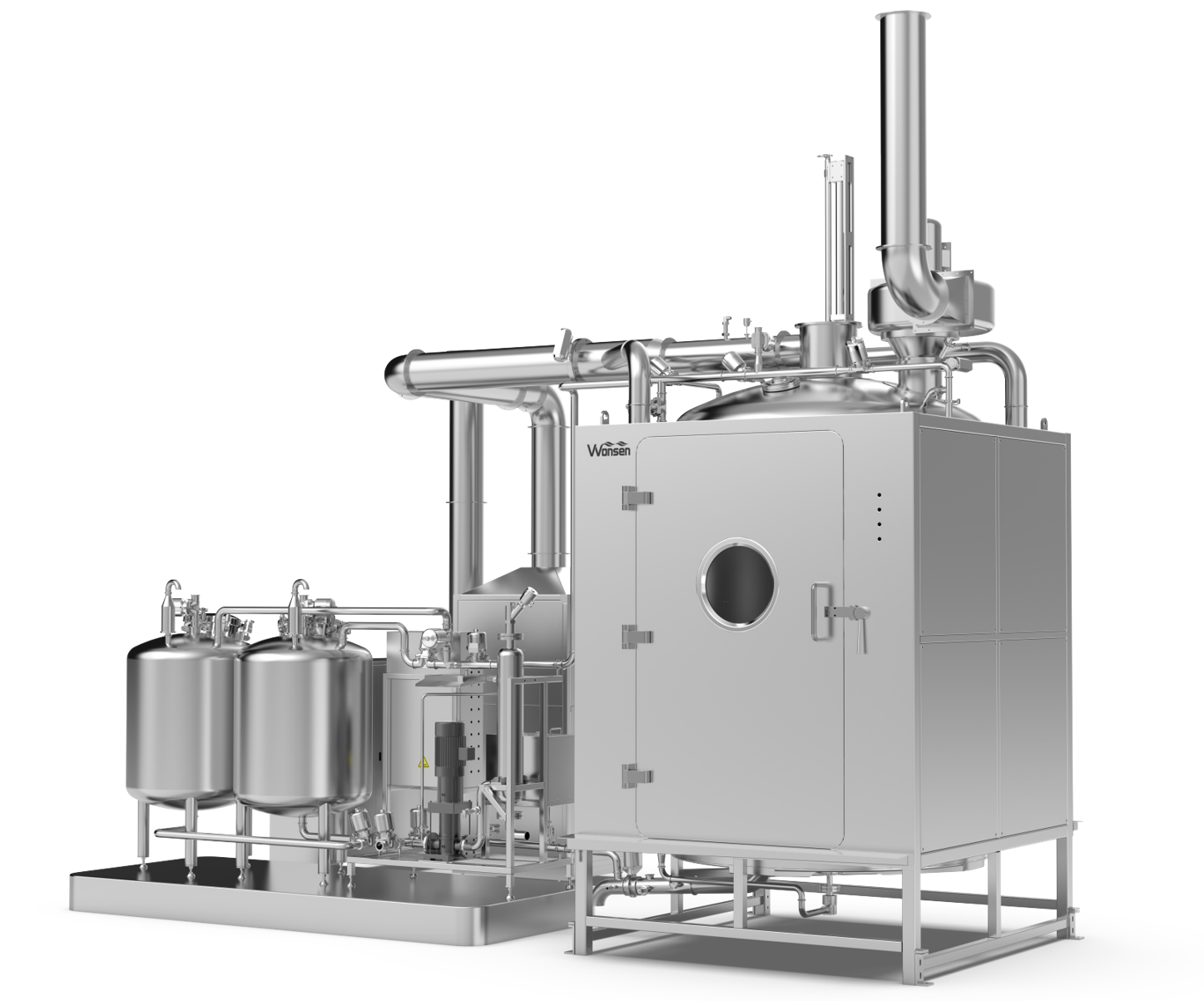

ZLXHD-200 Multifunctional Bin Cleaning Machine Hopper Washing Machine with Big Sight Window for Better Viewing

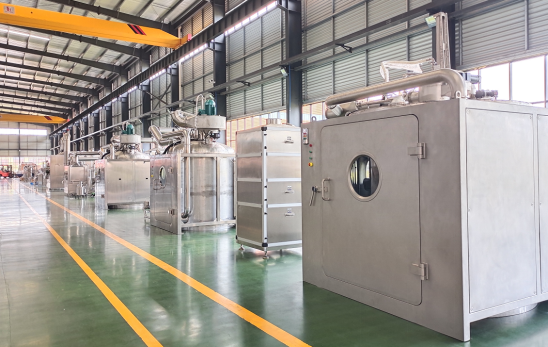

ZLXHD multifunctional bin cleaning machines assembled in Wonsen factory

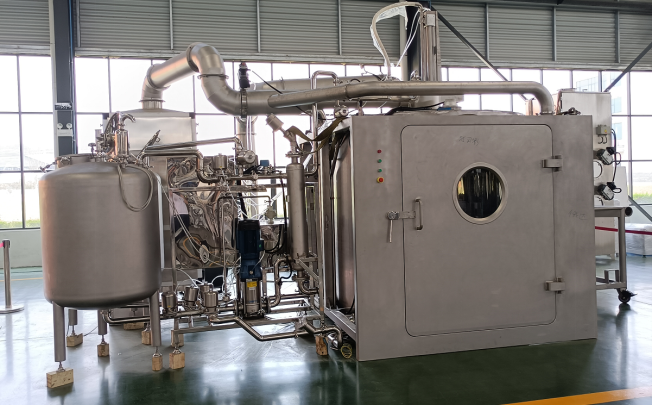

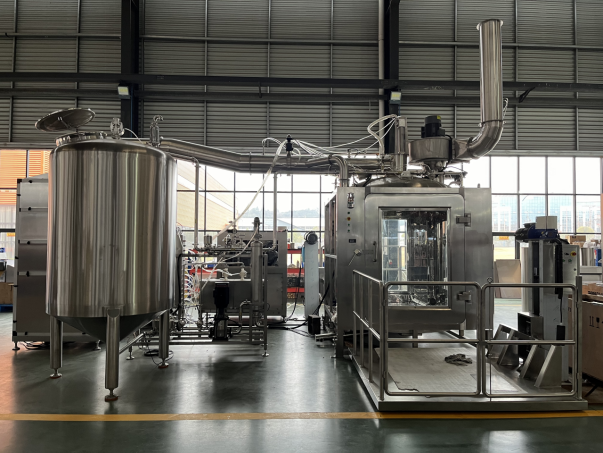

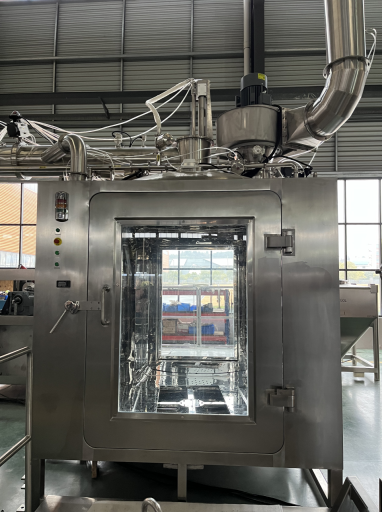

With big sight window for better viewing
Application
The ZLXHD series hopper cleaner is mainly used for cleaning stainless steel barrels, IBC transfer hoppers and mixing transfer hoppers in such industries as medicine, chemical industry and food.
The ZLXHD series hopper cleaner can effectively clean foreign matters remaining on the inner and outer surfaces of the hopper to avoid cross contamination of various ingredients during the production. It is an indispensable machine in enterprises. It is also a necessary machine for the GMP requirements to be met during the production process of solid preparations in pharmaceutical enterprises.

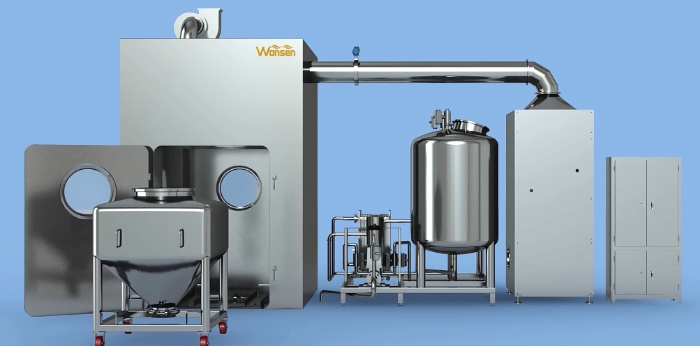

Cleaning for standard square cone IBC bins

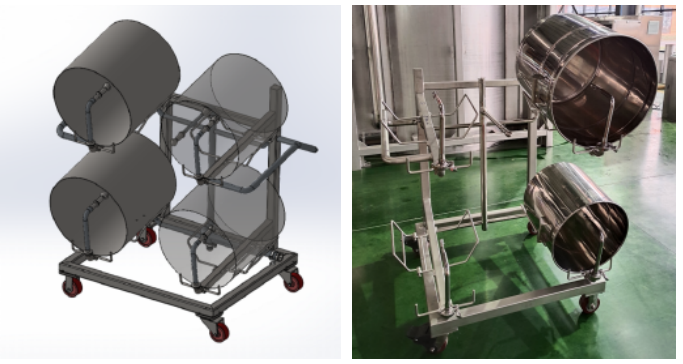

Cleaning for optional small IBC round drums
Work principle

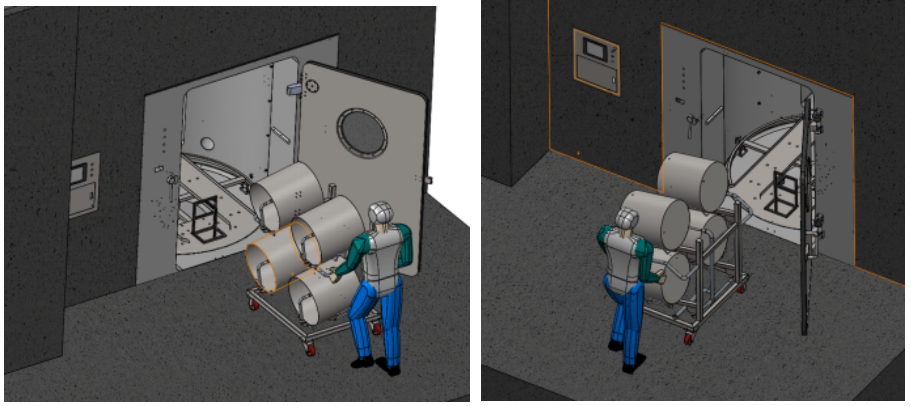

Push the hopper into the cleaning room and position it. Close the door and start the cleaner. The cleaner will carry out cleaning, drying and cooling of the hopper according to the set procedures. After all procedures are completed, open the cleaning room door and push out the hopper and send it to the storage station for storage and future use.
Features
▲ It provides uniform cleaning standard for the cleaning of vessels and makes the traceability and certification of the cleaning process easy.
▲ It improves production efficiency.
▲ It reduces labor intensity of workers.
▲ The equipment is a machine integrating cleaning, drying and cooling. With high degree of automation and simple operation, it adopts HMI and PLC control during the whole course, which can comply 21CFR Part11 requirements.
▲ The running parameters are recorded automatically to verify the running results.

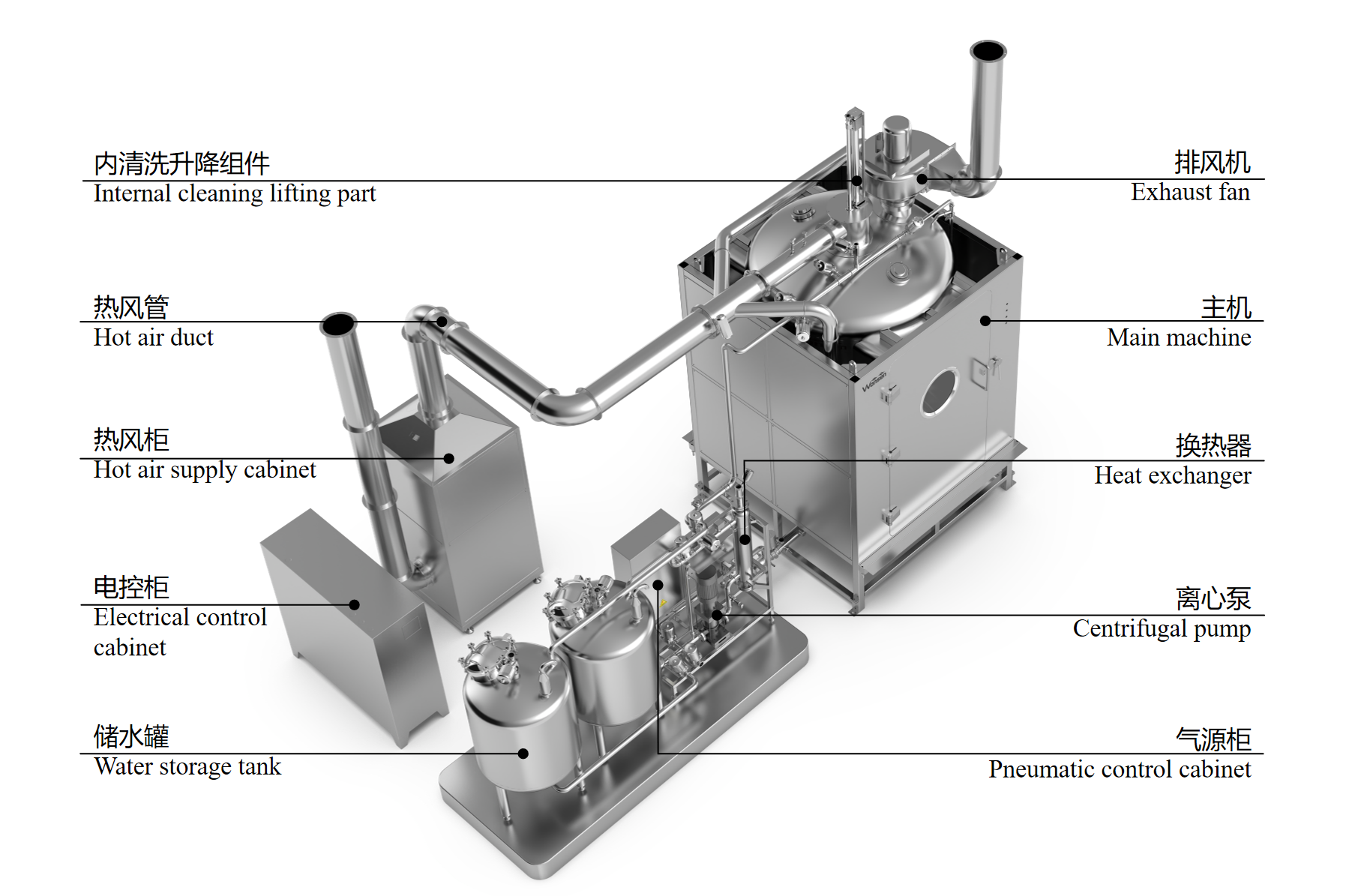

Structure
Technical parameter
No. | Name | Parameter | |
1 | Rotary motor power | 0.2kW (top rotation) /0.55kW (bottom rotation) | |
2 | Water pump motor power | 3kW Vertical pump/5.5kW (Sanitary pump) | |
3 | Pump flow | 10T/h | |
4 | Pump pressure | 0.3～0.6MPa Vertical pump 0.3～0.5 MPa (Sanitary pump) | |
5 | Airinlet fan power | 2.2kW | |
6 | Exhaust fan power | 5.5kW | |
7 | Electric heater power | 48kW（Option） | |
8 | Hot water temperature | ≤60 ℃ | |
9 | Hot air temperature | ≤80 ℃ | |
10 | Hot air heating method | Steam heat exchanger heating (user provides steam)/electric heating | |
11 | External condition | Power supply | 3PH/380V/50Hz |
12 | Compressed air pressure | 0.6～0.8 MPa | |
13 | Compressed air assumption | 2 m3/min | |
14 | Compressed air tube (hard tube) | DN25*K50.5 | |
15 | Water pressure | 0.3～0.6 MPa (vertical pump)/0.3～0.5 MPa (sanitary pump) | |
16 | Maximum liquid consumption※ | 10m3/h | |
17 | Pressure of the external water source | 0.1～0.2MPa | |
18 | Water inlet pipe | DN50*K64 | |
19 | Water drain pipe | DN100*K119 | |
20 | Referenced dimension size※ | According to the actual drawing | |
21 | "※" is a reference value, consumption, yield, net weight of equipment, dimensions and other standards for reference only, the actual parameters and materials, configuration, process related. | ||
