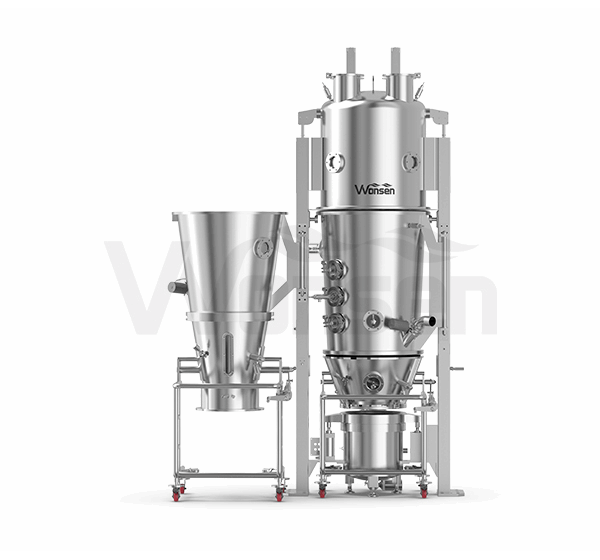

Laboratory multifunctional fluid bed granulator
- Wonsen
- China
- 60 days
- Always Available
The machine is a multi-functional granulator integrating top spray, bottom spray and side spray.It is mainly suitable for small batch processing in the laboratory.According to the process requirements can be realized material mixing,drying,granulation coating,pelleting,etc.Widely used in pharmaceutical,food, chemical and other industries.
Working principle
The machine is composed of air inlet system,fluid bed system,top spray system,bottom spray system,side spray system and exhaust and dust filter system.The top spray provides the granulating function,the bottom spray provides the pellet coating function and the side spray provides the pelletizing function.The above functions are realized in one machine.Users can select the optional functions according to actual process requirements.
Technical parameter
| Model | DPLS-0.2 | DPLS-0.5 | DPLS-1 | DPLS-2 | DPLS-3 | DPLS-5 | |
| Vessel volume（L） | Top spray | 1.25 | 3 | 5.6 | 5.8 | 9 | 38 |
| Bottom spray | 1.25 | 3 | 14 | 16 | 9 | 22 | |
| Side spray | - | - | 5.9 | 7 | 8.5 | 15 | |
| Production capacity (kg/batch) | Top spray | 0.2 | 0.5 | 1.5 | 2 | 3 | 3-5 |
| Bottom spray | 0.2 | 0.3 | 1.2 | 2 | 2 | 1-3 | |
| Side spray | - | - | 1 | 1 | 2 | 2.4 | |
| Compress air | Pressure（MPa） | 0.4-0.6 | |||||
| Air consumption (m³/min) | 0.15 | 0.15 | 0.15 | 0.15 | 0.8 | 1 | |
| Electric heating power（kw） | 2 | 3 | 4 | 4.5 | 9 | 12 | |
| Hot air temperature adjusting range（°C） | Room temperature to 120 | ||||||
| Hot air filtering precision | Sub-efficient or effective | ||||||
| Fan power（kw） | 0.75 | 1.75 | 2.2 | 4 | 4 | 5.5 | |
Outline dimensions | W | 700 | 855 | 855 | 855 | 885 | 1100 |
| H | 900 | 1815 | 2220 | 2275 | 2520 | 2825 | |
| L | 1000 | 1200 | 1600 | 1800 | 1800 | 1900 | |
| φD | 159 | 214 | 256 | 300 | 300 | 400 | |
| Equipment weight(kg) | 600 | 650 | 700 | 750 | 800 | 850 | |
