Screw Conveyor Connected to Stainless Steel Horizontal Mixer Ribbon Mixer
Screw Conveyor Connected to Stainless Steel Horizontal Mixer Ribbon Mixer
- Wonsen
- China
- 60 days
- Strong
1. For powder mixing
2. Material: Position
3. Bulk density: Approximately 0.5
4. Total volume: 20L
5. Effective volume: 6 - 12L (Batch capacity approximately 6kg)
6. Speed:0~280rpm/min @0~50Hz (controlled by electrical cabinet）
7. Usage environment: Indoor
8. Control system: Siemens 10inch HMI touch screen and PLC, Motor& frequency with Siemens brand
9. Power supply environment: 3PH/220V/50Hz
Products Description
Features
- For powder mixing
- Material: Position
- Bulk density: Approximately 0.5
- Total volume: 20L
- Effective volume: 6-12L (Batch capacity approximately 6kg)
- Speed:0~280rpm/min @0~50Hz（controlled by electrical cabinet
- Usage environment: Indoor
- Control system: Siemens 10inch HMI touch screen and PLC, Motor& frequency with Siemens brand
- Material: Position
- Bulk density: Approximately 0.5
- Total volume: 20L
- Effective volume: 6-12L (Batch capacity approximately 6kg)
- Speed:0~280rpm/min @0~50Hz（controlled by electrical cabinet
- Usage environment: Indoor
- Control system: Siemens 10inch HMI touch screen and PLC, Motor& frequency with Siemens brand
- Power supply environment: 3PH/220V/50Hz
Application

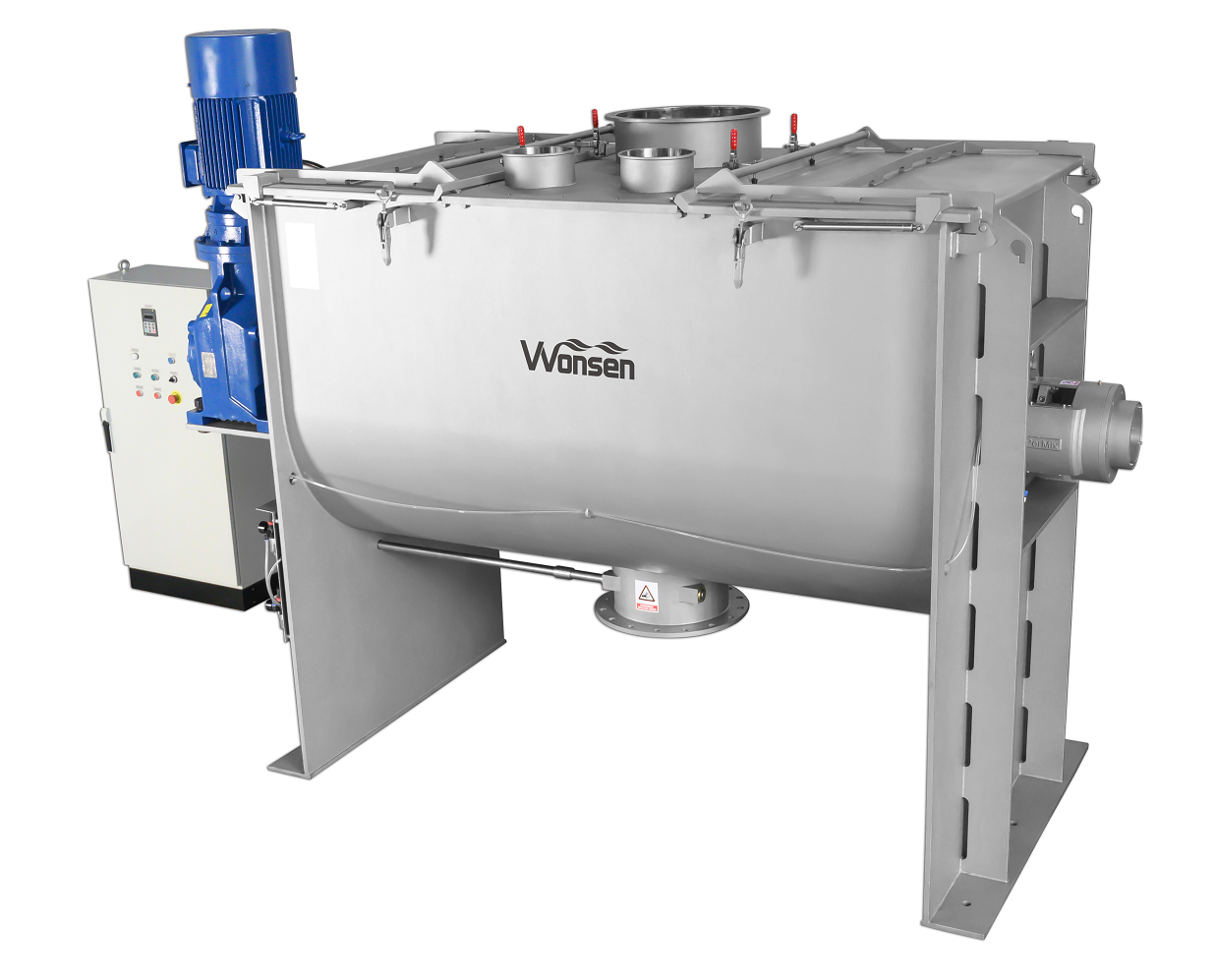

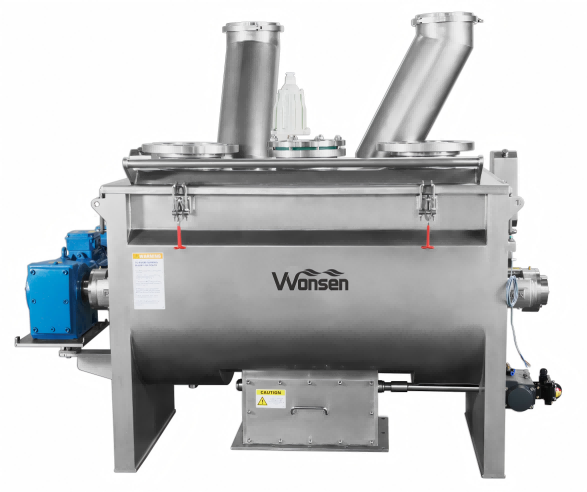

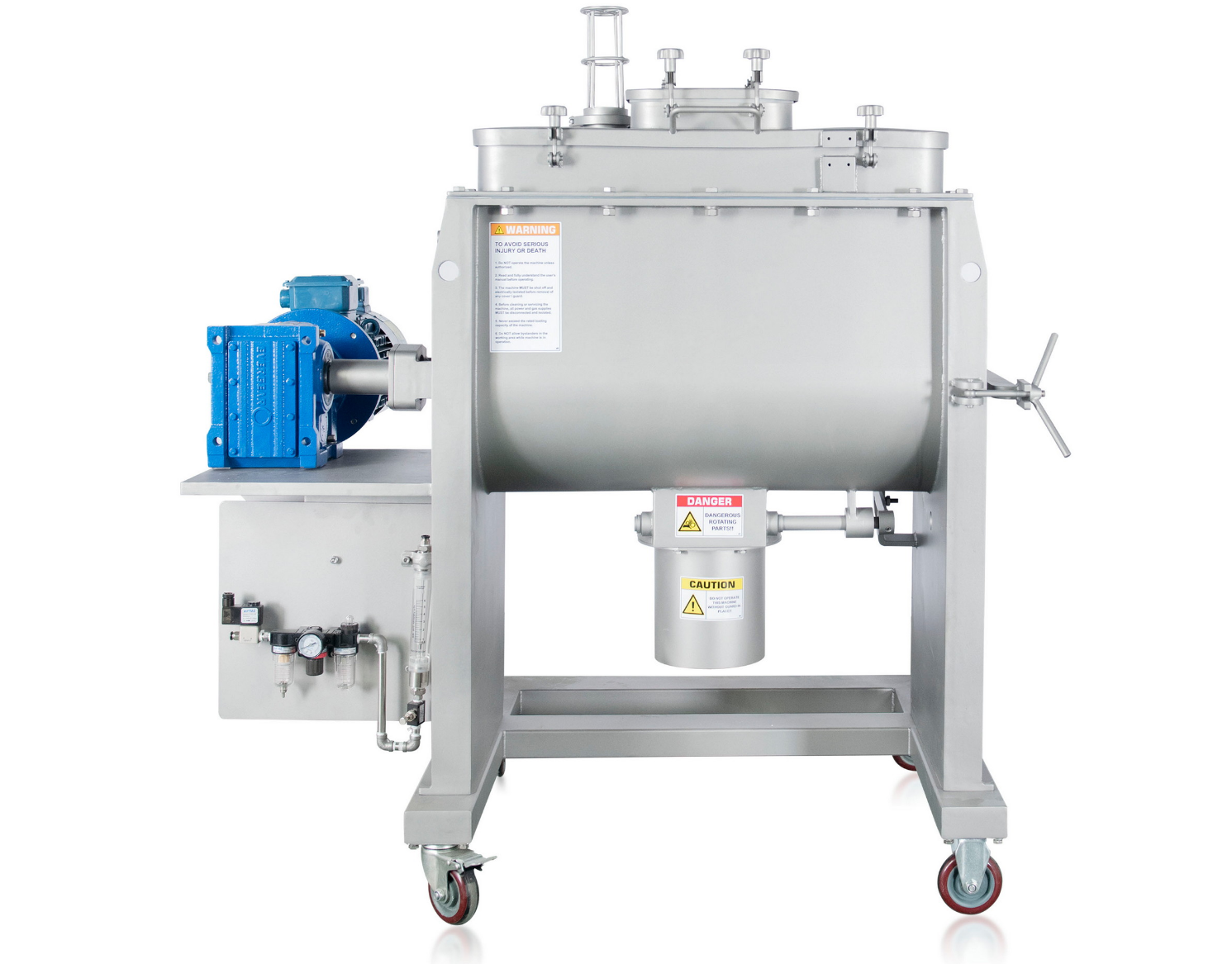

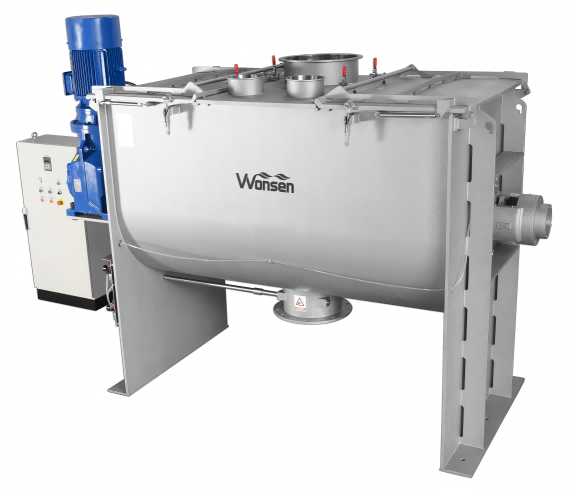

PRB Series Horizontal Ribbon Mixer is a highly efficient and versatile mixing equipment designed for uniformly blending dry powders, granules, and viscous pastes. The unique double-helix ribbon agitator within its U-shaped trough delivers exceptional homogeneity grade in mixing operations.
Engineered by Wonsen, our PRB ribbon blender achieves a maximum mixing ratio of 1:500,000 – meaning it can homogenize trace components as small as 1g within a 500kg batch while maintaining precise formulation requirements.
Working principle

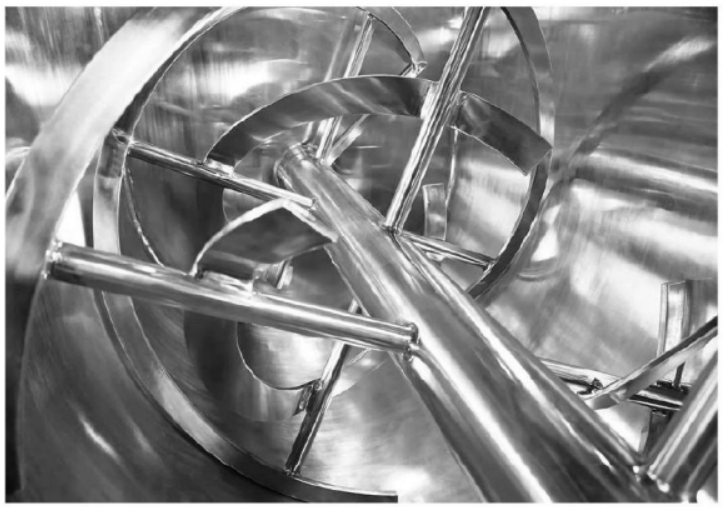

The Wonsen PRB Ribbon Mixer comprises a drive unit, U-shaped trough, and dual counter-rotating ribbon agitators (inner and outer helices). During operation:
Material Convection Flow
- The outer ribbon pushes material from both ends toward the center of the trough.
- The inner ribbon drives material from the center toward both ends.
- Creates intense counter-current convective flow.
3D Homogenization
- Material ascends along the ribbon edges and descends under gravity.
- Generates a three-dimensional flow field throughout the trough.
- Enables rapid blending with short mixing cycles and low power consumption.
Discharge Mechanism
- Post-mixing, material discharges via a flush-mounted discharge gate valve at the trough bottom.
- Valve operation: Pneumatic or manual.
- Adjustable discharge height enables dust-free transfer to downstream containers.
Sealing & Loading
- Main shaft sealing: Multi-layer PTFE packing in stuffing boxes at both ends (optional lantern ring for air purge).
- Loading: Top-fed via open trough or inlet ports.
- Drain: Central flush-bottom valve with cleaning connection.
