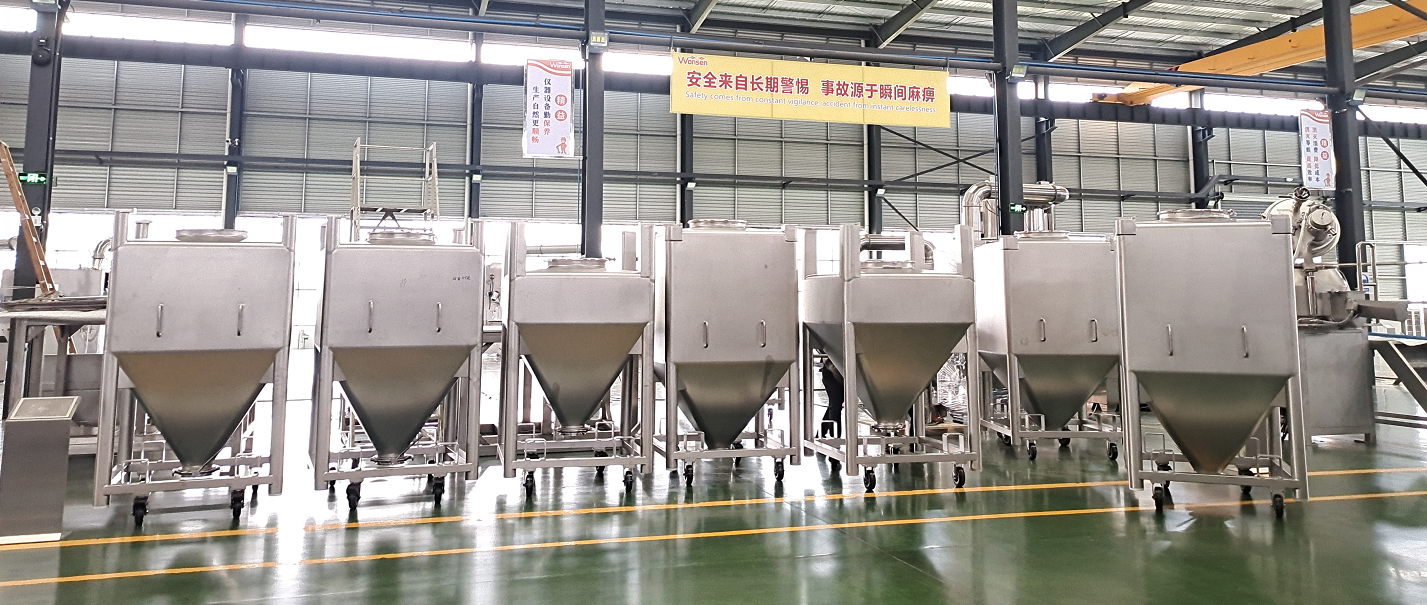

With interchangeable mixing bins of different volume

The machine is provided with such functions as automatic lifting, mixing, lowering, etc. A bin mixer and several mixing bin of different specifications can meet the mixing requirements of different batches and diversified varieties of products. It is an ideal machine for mixing in pharmaceutical plants. It is also widely used in such industries as Pharmaceutical, chemical, food industry, etc.

The machine is composed of two machine basses, rotation frame, rotation system, lifting system, control system, etc.

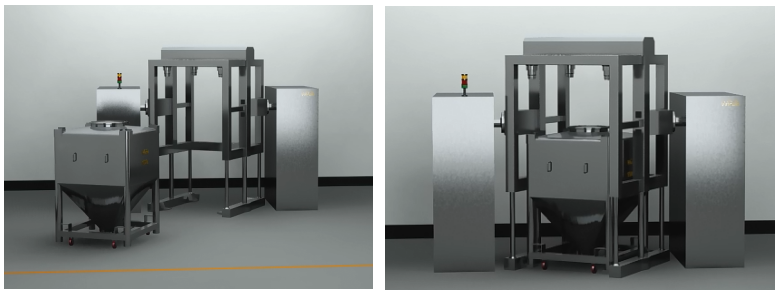

Push the mixing bin into the rotation frame and complete the positioning.

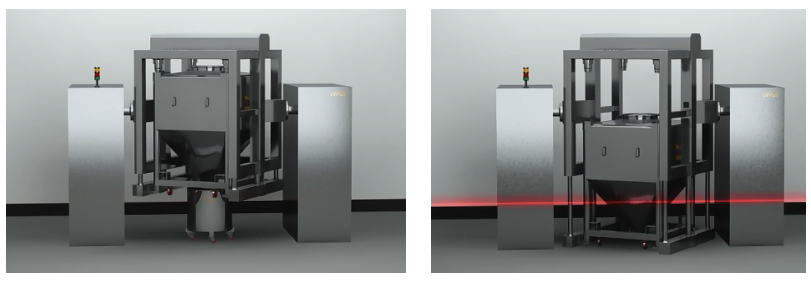

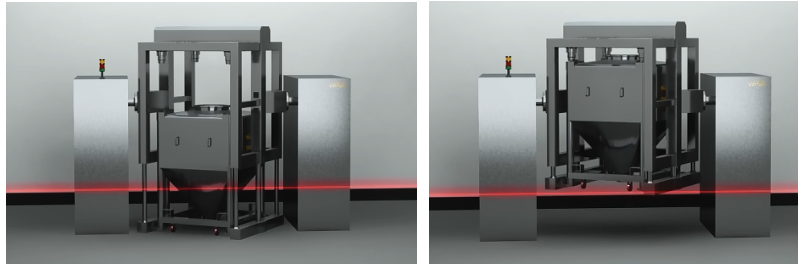

Start the control system to lift the rotation frame to the mixing height and clamp it reliably. It is equipped with the infrared security barriers.

The driving system will carry our automatic mixing according to the set time, rotation speed and other data.

After the mixing operation is finished, the rotation frame will stop vertically, the bin can discharge material into other IBC bins or automatically fall to the ground, the machine will stop and process data will be printed. The bin is transferred to the next procedure.

The machine is a new machine researched and developed successfully by our company according to China's actual conditions after absorbing and digesting internationally advanced technology.

1.The machine has such features as reasonable structure, stable performance, convenient operation, no dead corners, and no exposed bolts.

2.The mixing bin forms an included angle of 30 °with the rotation axis.

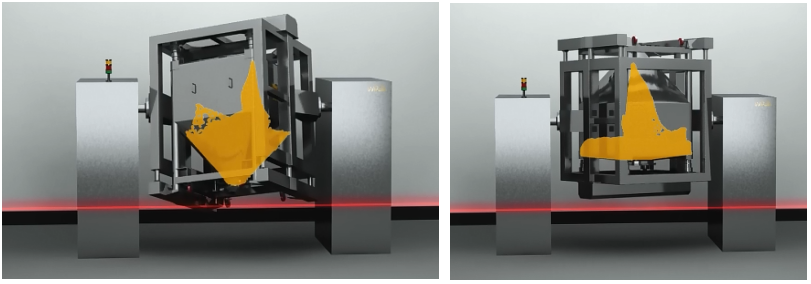

The materials in the mixing bin rotate along with the gyrator and make tangential movement along the hopper walls, producing strong turning and high-speed-tangential movement and achieving the best mixing infrared safety device and the discharging butterfly valve with the mis-operation preventer to ensure safe production.

3.The materials can go through different working procedures in the same bin without the need of frequent material transferring, material charging, etc.

4.The machine effectively controls dust pollution and cross contamination, reduces loss of materials, controls material layering, optimizes production processes, and fully meets GMP requirements for medicine production.

5.Good control system sensitivity, compact machine structure and stable and reliable running.l HMI and PLC control, can display English/Chinese

l 5 level password protection for operation

l Bin-in-place detection: Automatic positioning of bin after completion of mixing time, vertical with discharging valve at bottom

l Key Switch (for main On-Off)

l Mixing speed and time setting

l RPM and timer display (to be displayed on HMI)

l Receipe storage (for mixing time, mixing speed, etc)

l Monitoring of fault and blocking signals;

l Monitoring the operation of all mixing programs；

l Archiving keeping data on the progress of the technological process（option）

l USB data output（option）

l Equipped with power shutdown protection: Phoenix UPS（option）

l Complying 21CFR Part11 requirements（option）
