ZLJ-200 Moveable Multi-mill Suitable for Milling Thermal Sensitive Material and Granulating for Damp Material
- Wonsen
- China
- 120 days
- Strong
The machine is suitable for mill thermal sensitive material and granulating for damp material.
ZLJ-200 Moveable Multi-mill Suitable for Milling Thermal Sensitive Material and Granulating for Damp Material

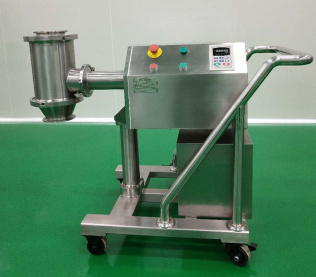

Without manual feeding hopper

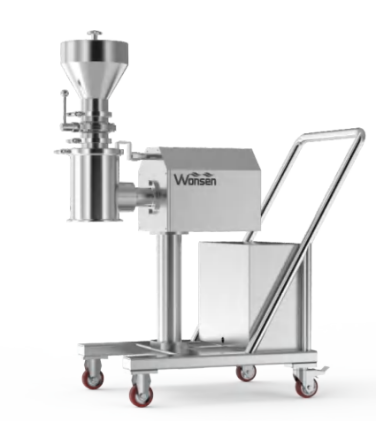

With manual feeding hopper
Introduction
The machine is suitable for milling thermal sensitive material and granulating for damp material. It is less the heat and the powder dust. The sieve of stator is made of stainless steel plate. It is not easy to damage. The gap between mill blade and sieve can be adjusted. Can treat material that is adhesive or in gum or heat or damp state.
Technical parameter
Take the ZLJ-200 model as an example:
No. | Item | Model/Specification |
1 | Capacity | Capacity up to 150-250kg/h based on 3mm and 4mm screen (final capacity based on different material characters and mesh size) |
2 | Dry cone mill mesh size | Customized |
3 | Wet cone mill mesh size | Customized |
3 | Motor power | 4kW |
4 | Rotating speed | 0~960rpm |

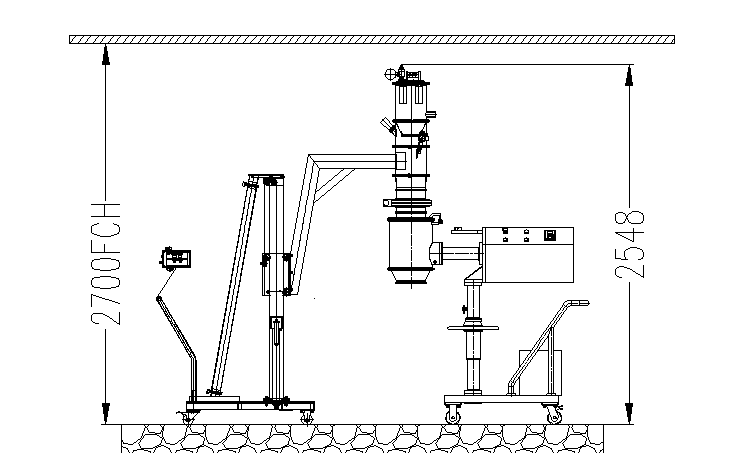

5 | Dimension | Reference drawing |
6 | Machine weight | 270kg |
7 | Power supply | 3PH/380V/50Hz |
