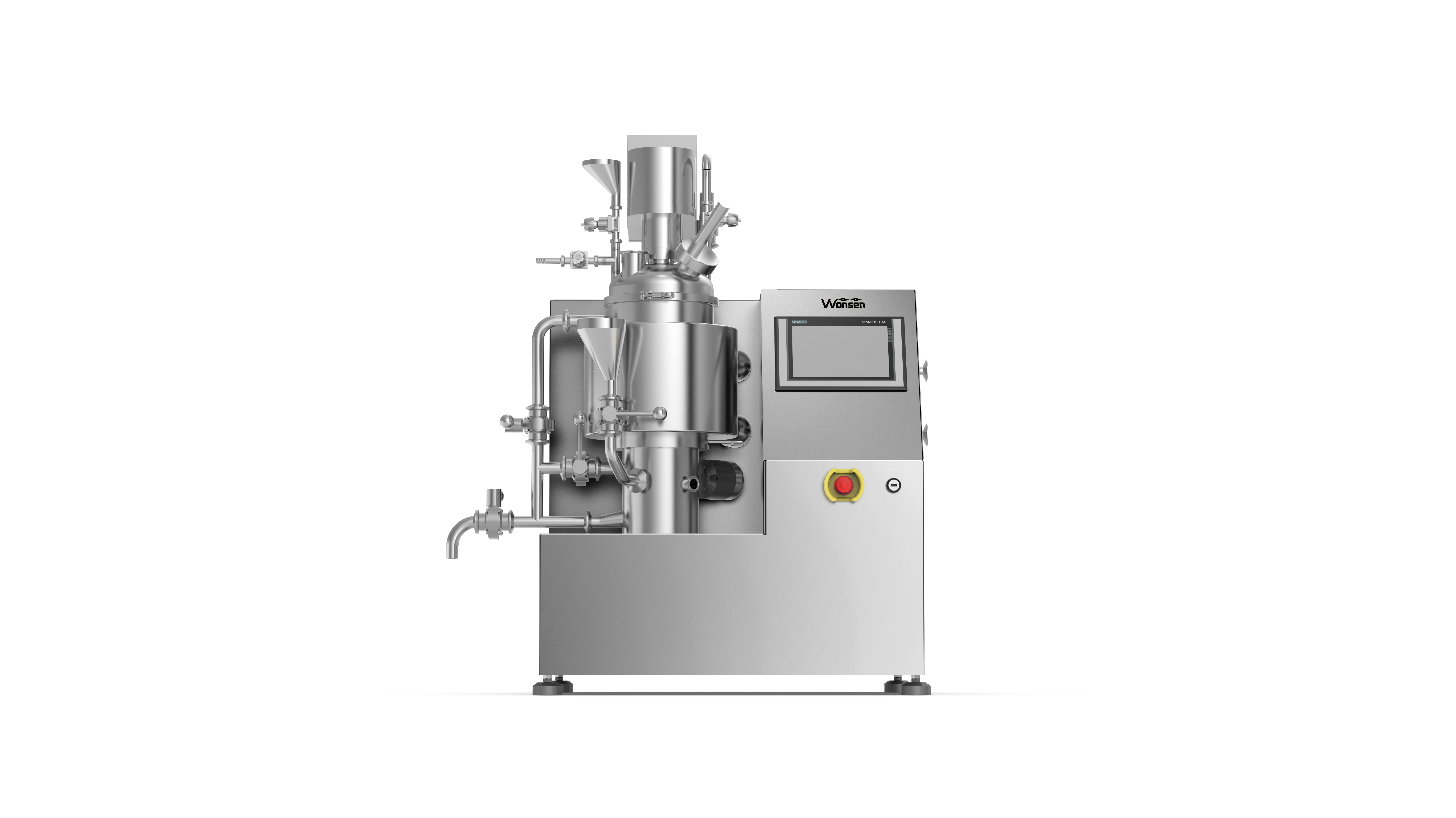

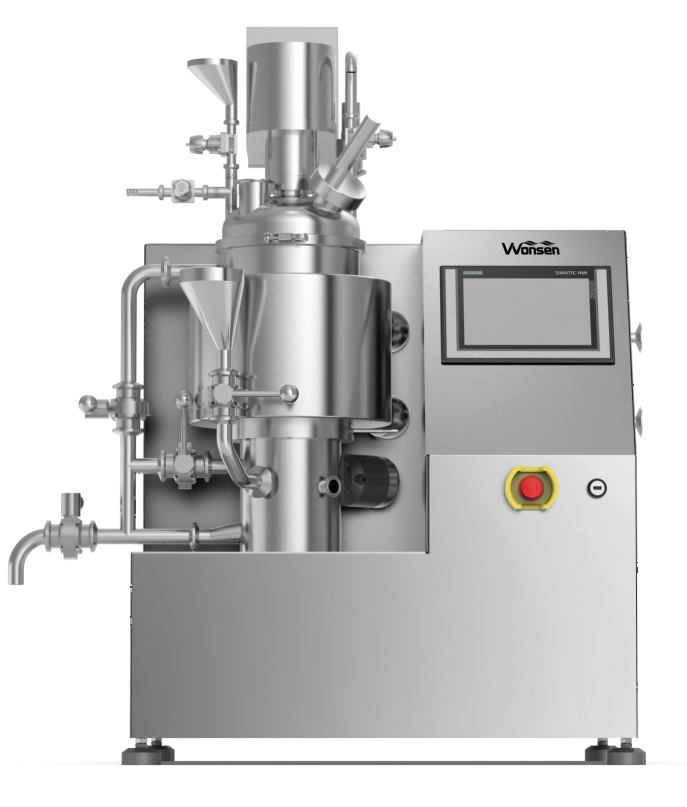

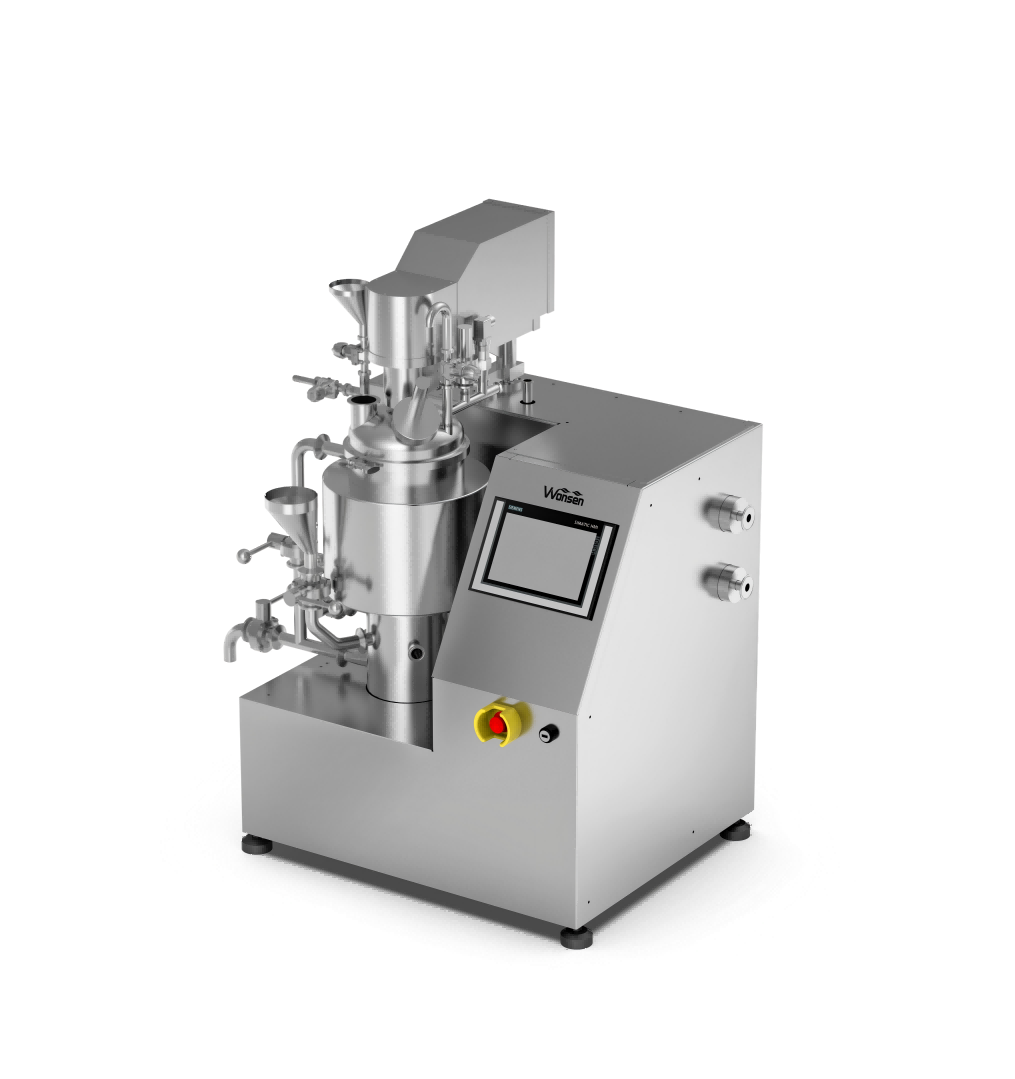

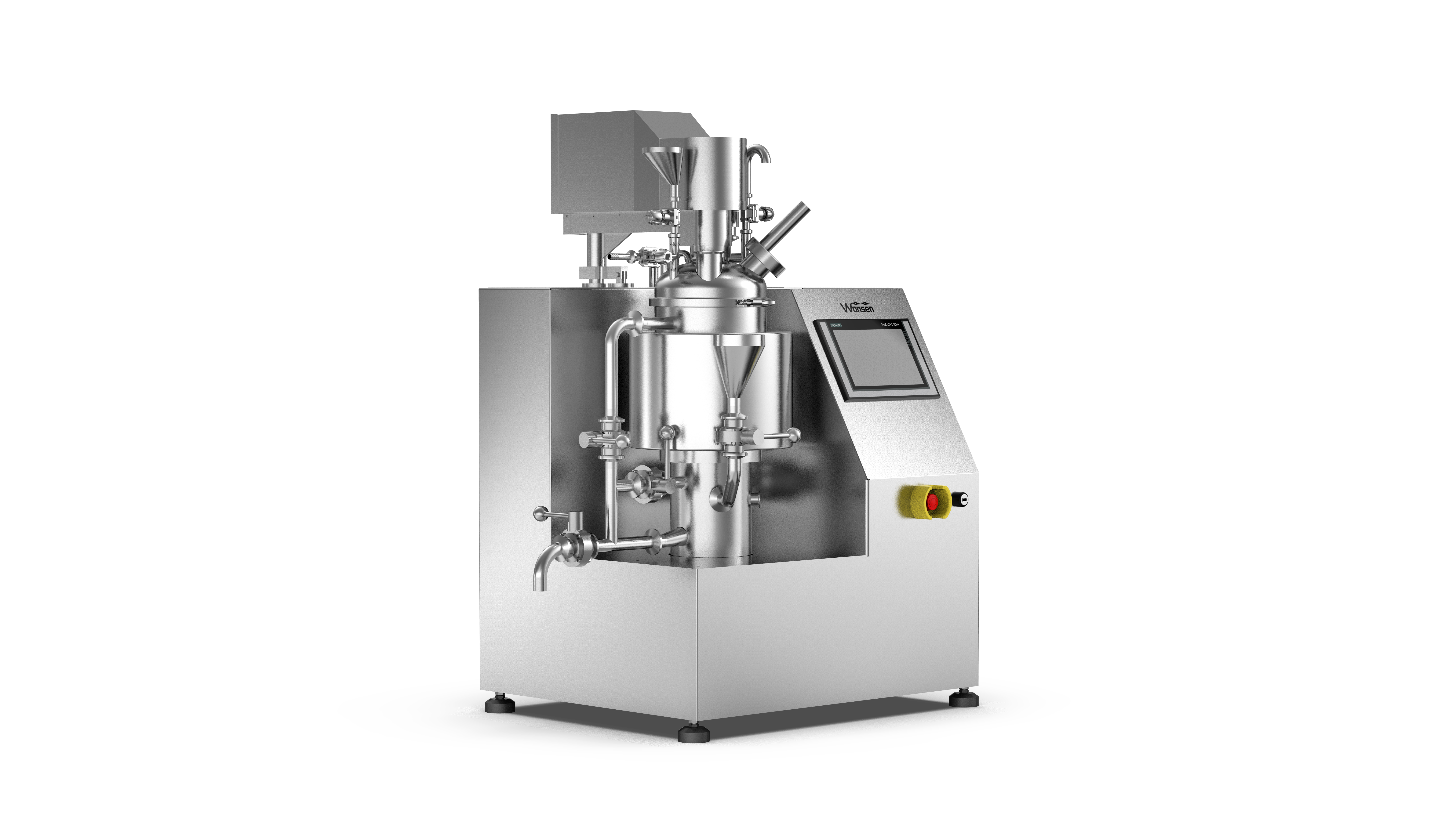

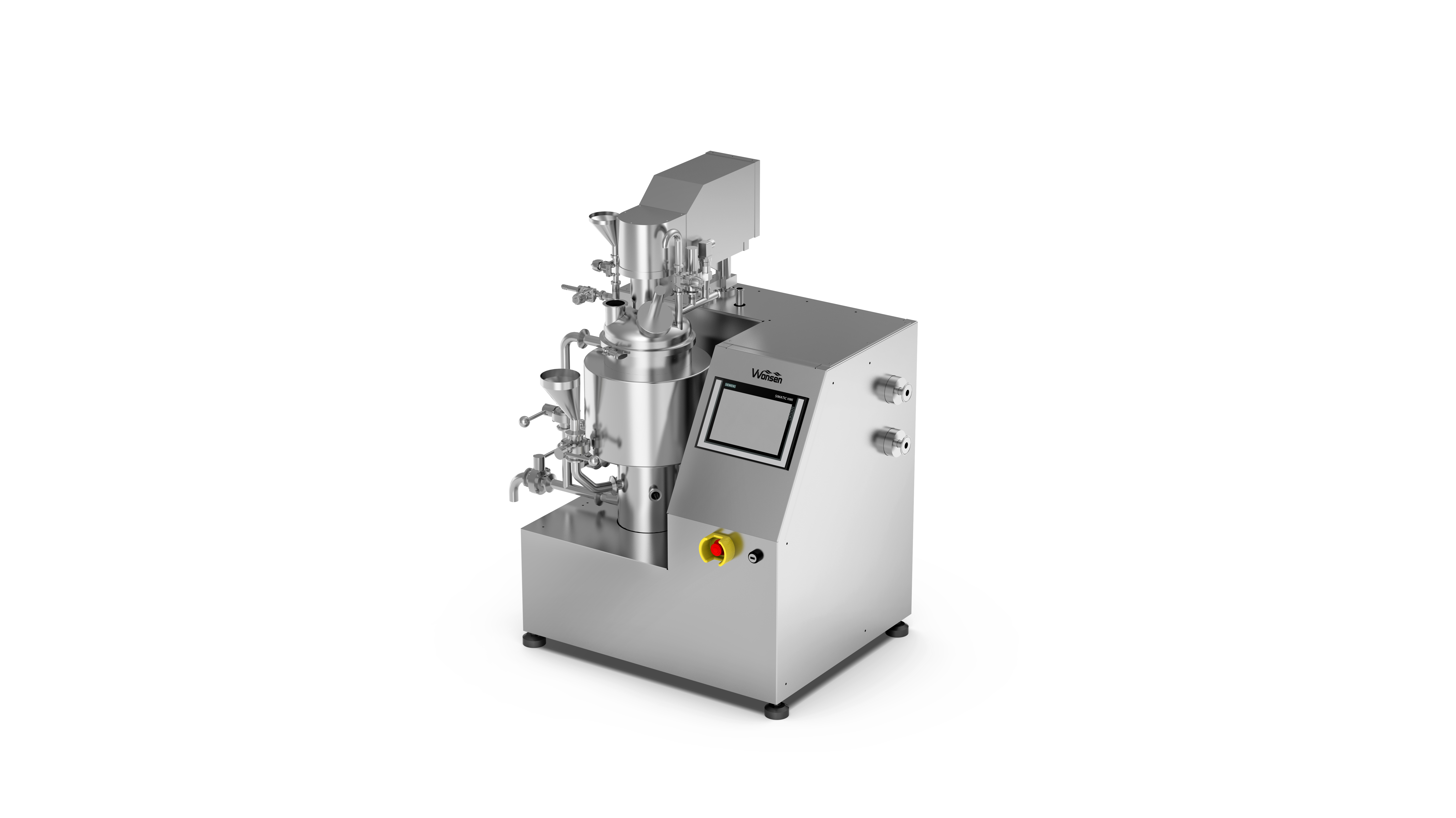

ZRX Recirculation Vacuum Homogenization Emulsifier
- Wonsen
- China
- 120 days
- Strong
Multifunctional integration:The recirculation vacuum homogenization emulsifier integrates functions such as mixing, dispersion, homogenization, and emulsification, and can transform two immiscible liquids (such as water and oil) into a uniformly distributed liquid dispersion system.
Features
Vacuum operation:The equipment operates in a vacuum environment, which helps to remove bubbles from the material and improve the stability and quality of the product.
High shear homogenization: Through the action of high shear force, the equipment can refine the material and achieve ideal emulsification effect. The homogenization system comes with a pump function, which can shorten the discharge time without the need for additional CIP pumps.
Internal and external circulation homogenization: The recirculation vacuum homogenizer is equipped with an internal and external circulation homogenizer, which enables the material to work in an internal circulation homogenization state, improves the emulsification effect, and the highest processing viscosity can reach 100PaS.
Equipment structure
Equipment structure
The main machine mainly consists of a water phase oil phase pot, an emulsification tank, a stirring system, a vacuum system, a heating and cooling system, a homogenization system, and cleaning components (optional).

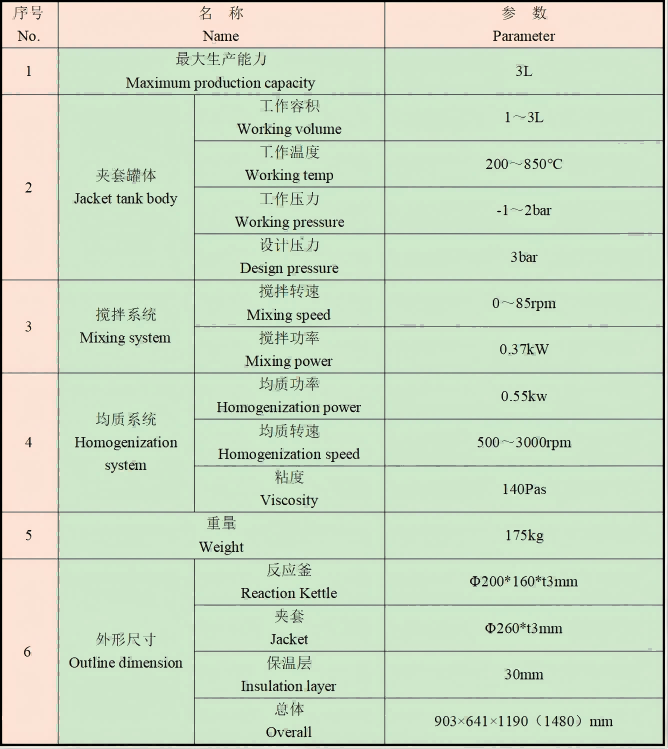

| Model | ZRX-5 | ZRX-10 | ZRX-25 | ZRX-50 | ZRX-100 | ZRX-200 | ZRX-500 | ZRX-1000 | ZRX-2000 | |
| Volume（L） | 7 | 13 | 32 | 65 | 130 | 260 | 650 | 1350 | 2600 | |
| Filling Rate | 30%-70% | |||||||||
| Working Pressure (bar) | -1-2.5 | |||||||||
| Operating Temperature (℃) | -10-150 | |||||||||
| Outer stirring speed (rpm) | ≤120 | ≤120 | ≤90 | ≤66 | ≤54 | ≤43.2 | ≤32.4 | ≤25.2 | ≤20.4 | |
| Inner stirring speed (rpm) | ≤360 | ≤360 | ≤270 | ≤198 | ≤162 | ≤129.6 | ≤97.2 | ≤74.4 | ≤61.2 | |
| Material Viscosity (mPas) | ≤100000 | |||||||||
| Homogenizer Speed (rpm) | ≤8050 | ≤8050 | ≤8050 | ≤8050 | ≤6000 | ≤6000 | ≤4200 | ≤4200 | ≤3000 | |
| Overall dimensions (mm) | 903*623*1162 (1462) | 635*661*1065 (1515) | 850*1010*1637 (2086) | 850*1010*1817 (2417) | 1215*1407*2305 (2905) | 1215*1407*2421 (3376) | 1650*1900*3315 (4615) | 1650*1900*3749 (5499) | 2210*2710*4951 (7051) | |
| Total Power (kW) | 5 | 5 | 7 | 8 | 12 | 13 | 31 | 35 | 70 | |
