Wonsen got customers quality approved certificate

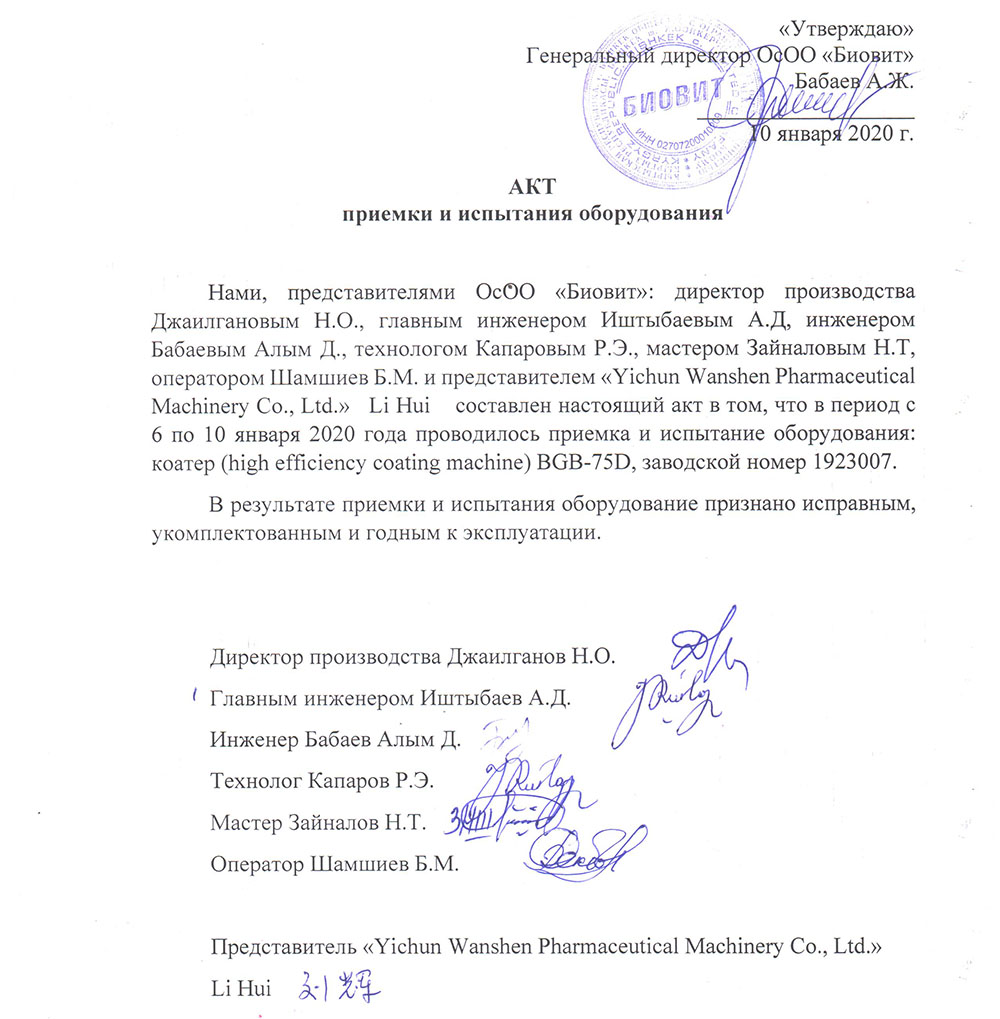

Wonsen engineer has successfully completed the installation and commissioning of all kinds of coating equipment in Russia and kyrgyzstan.
The customer hereby issues the certificate to express his gratitude and blessing to Wonsen.
New Type Auto Coating Machine
(Third Generation )
Technical Specification & advantage
Exclusive Patent: 20171114587236
1. Outline photos：
The below is old type coater photo:
Old type coater: Not in Integrated body structure |
The below is new type coater photo:
New type coater: New type hinge mode, easy for open and closed, built-in spray air pipe to reduce messy layout on the main machine |
New type coater: Integrated body structure, external appearance elegant, simple and clear |
2. Air inlet & exhaust system
Both Old & New type coater: Air inlet and exhaust devices adopt high pressure resistant air valves, avoiding the water back flow into auxiliary machine when doing CIP and external air back flow when not working, also avoiding the cross contamination. Can also select optional CIP by-pass system for air exhaust system |
New type coater: Overall open design on the front door, zero residual, Meets FDA、CGMP standard requirements Adopt the air sealing, well sealed and good looking |
New type coater: Transition arc transition pan free of dead corner
|
3. Interchangeable coating pan
New type coater: Be equipped with interchangeable coating pans and trolley, easy for interchanging and realizing different capacity production in one machine |
4. Loading device
Both old and new type coater: BGB-SL supporting tablet charging & tilting device has replaced the traditional YTG or YTY lifter series. No appearance of tablet stuck, small space tacking, easy operation, high security
|
Old type coater: traditional YTG or YTY lifter for loading tablets |
5. Spraying system
New type coater: Adjustable spraying angle and area |
Both Old and New type coater: can select optional Germany Brand Schlick spray nozzle with ABC technology and SUS316L material |
6. Sampler taking device
New type coater: with on-line closed airtight sampler |
7. Discharging device
Old type coater: cannot automatically reverse discharging, it requires the special separated discharging device |
8. Coating pan roughness
Both old and new type coater: Cone arc transition, preventing the tablet core |
Both old and new type coater: adopting European polishing technology，coating pan finishing roughness RA can reach 0.09 micron |
Both old and new type coater: coating pan finishing surface treatment comparison |
9. Mixing baffles
Both old and new type coater: Unique design for diversion plate baffles, the surface of the tablet rolling is large can automatically reverse discharging, can discharging completely can interchangeable different size baffles |
10.
Both old and new type coater: Full set of big brand electrical components, The control system：Can select optional Siemens IPC HMI（industrial panel computer） achievable the function of storage, printing, electronic batch record and audit trail etc; reserve Ethernet，SCADA,MES connection Meeting R&D、technology improvement, Generic drug consistency evaluation, Conform 21 CFR, Part11 requirements |
Control system
