Our Vertical Bin Cleaning Machine is a specialized solution for cleaning transferring and mixing bins in solid preparation production. Equipped with a lifting arm that extends the cleaning ball into the bin, it efficiently cleans IBC bins of various specifications, making it ideal for pharmaceutical plants. It offers optional manual or automatic lifting modes for flexible operation. With advanced HMI and PLC control, the machine ensures easy and reliable cleaning, and can optionally comply with 21 CFR Part 11 requirements for regulated environments. Designed for the pharma industry, this equipment delivers consistent, high-quality cleaning performance, meeting the hygiene standards of solid dosage production processes.
Vertical Bin Cleaning Machine | Pharma-Grade IBC Bin Washer for Solid Preparations
Introduction
With compact structure, convenient operation, good sealing performance and high adaptability, the IBC bin washing station produced by our company is used for cleaning industrial equipment and other parts that require cleaning in such industries as medicine, food and fine chemical industry. It is a processing machine designed and manufactured in accordance with GMP requirements.
Work principle
The pressure in the boosting pump is used to convey the mixture of the cleaning liquid and the desired water source. Through different water source connections, different water inlet valves can be operated according to the needs to connect with water sources, the detergent adding volume is controlled by valve then after mixing enters into boosting pump. Under the action of the boosting pump, flow output is formed within the pressure range of the pump according to the parameters in the pump height-flow performance table. The output flow changes with the change of pressure.
Features
The equipment can be equipped with three water pipe inlets for users to select. The water outlets can be connected to tees or crosses. With convenient and easy operation, it can be used for several machines simultaneously.
The equipment is equipped with a cleaning nozzle that can turn for 360° and a high pressure water gun. The procedure of bin cleaning can be completed through the operation by just one person.
The equipment is installed with lifting column to adjust height for different bin size
It is featured by concise structure and easy installation and disassembly

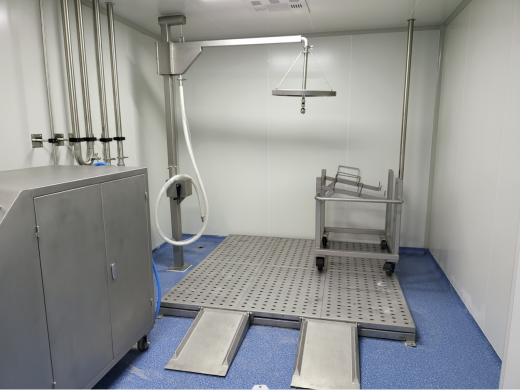

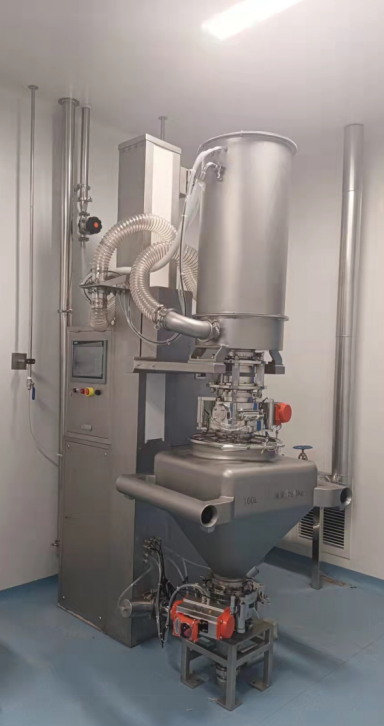

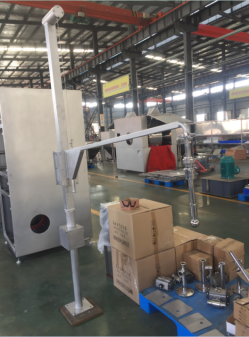

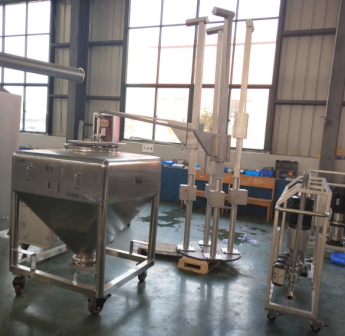

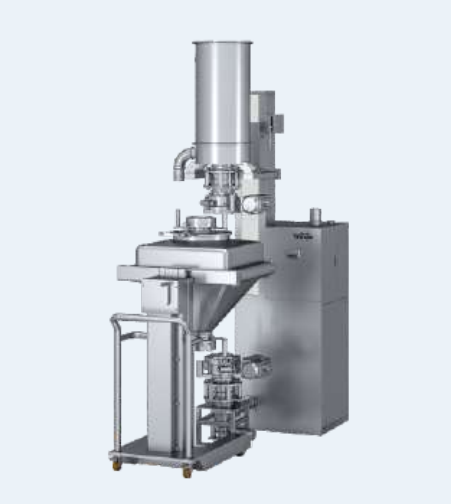

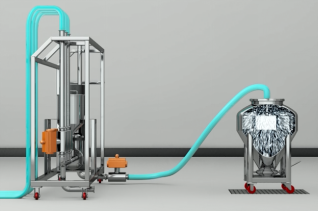

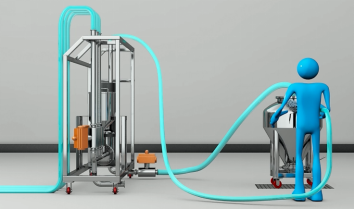

Reference Pictures

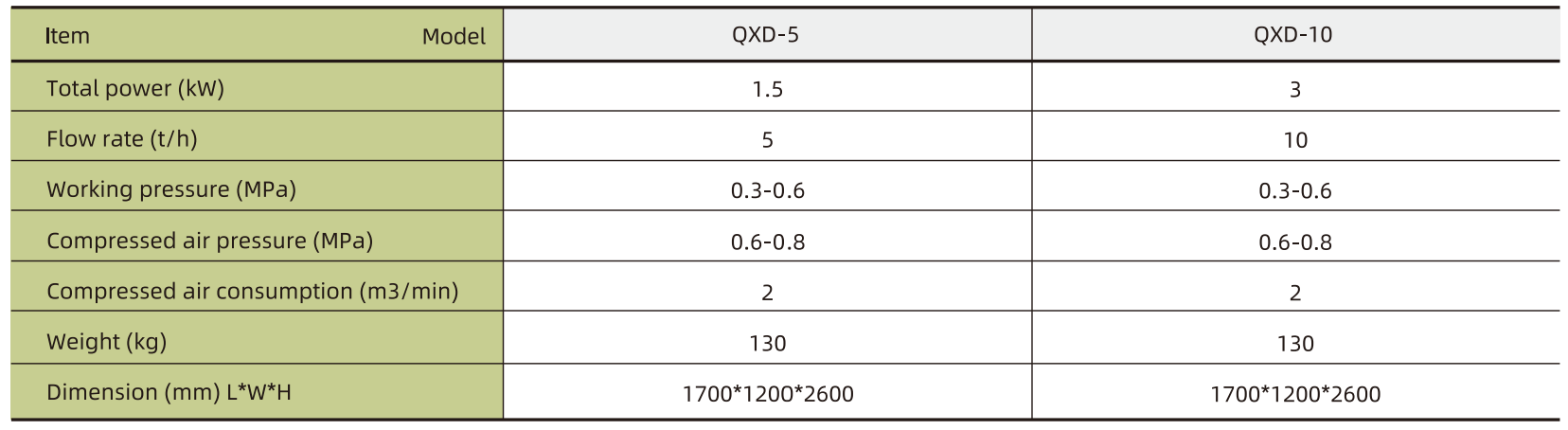

Technical parameter
