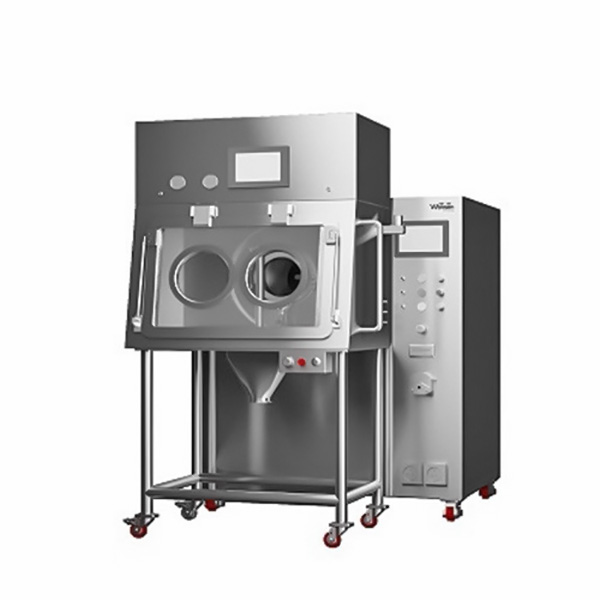

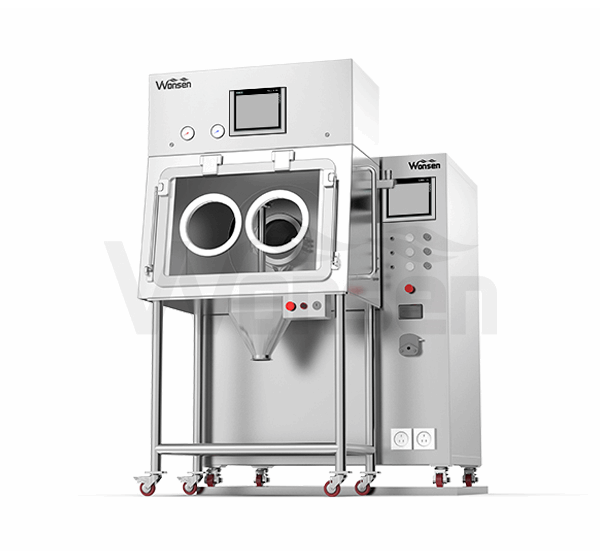

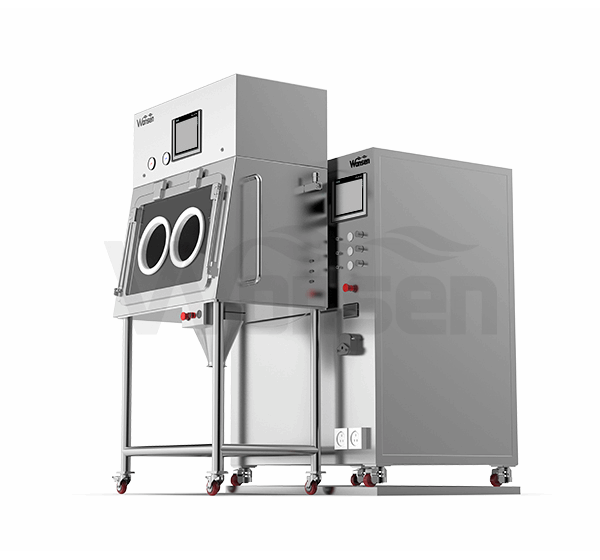

OEB4/5 containment coating machine

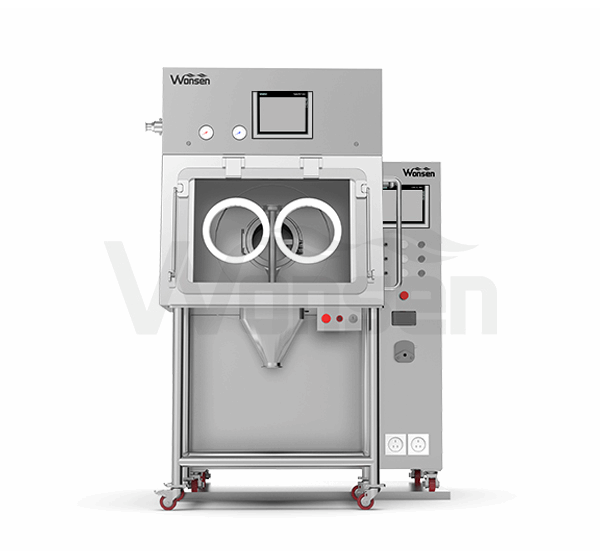

Containment coating machine

Application：

The containment coating machine is mainly suitable for tablet coating of API materials. The isolation system ensures the safety of operators, materials and environment, and realizes multiple coating process.

Working principle：

Under the rotation action of the coating pan, the tablets or pills to be coated make continuous movement in the pan. The peristaltic pump conveys the coating solution to the spray gun for spraying them on the surfaces of the tablets or pills to be coated. Under negative pressure, the inlet air handling unit supplies clean hot air according to the set procedures and process parameters to dry the tablets or pills. The hot air is discharged from the outlet air handing unit, so that the coating solution sprayed on the tablets or pills rapidly form solid, dense, flat and smooth film, thus the coating operation finish.

Features:

▲PLC programmable controller, automatic control program;

▲HMI interface, easy operation;

▲Three-level administrator password;

▲Remote communication function (optional);

▲Data export and print function;

▲Automatic operation& manual operation mode;

▲Temperature and humidity and differential pressure monitoring function;

▲ pressure alarm function (sound and light signal);

▲ lighting: illuminance ≥ 3001x;

▲ Reserve detection port of dust particle, floating bacteria and sedimentation bacteria;

▲Reserve port for sterilization;

▲CIP cleaning;

▲Meet the OEB4 standard;

▲Push-push filter for getting rid of dust.

Technical parameter:

Wonsen equipments pass CE certificates

Wonsen equipments pass EAC certificate

Wonsen Workshop

Processing Equipment

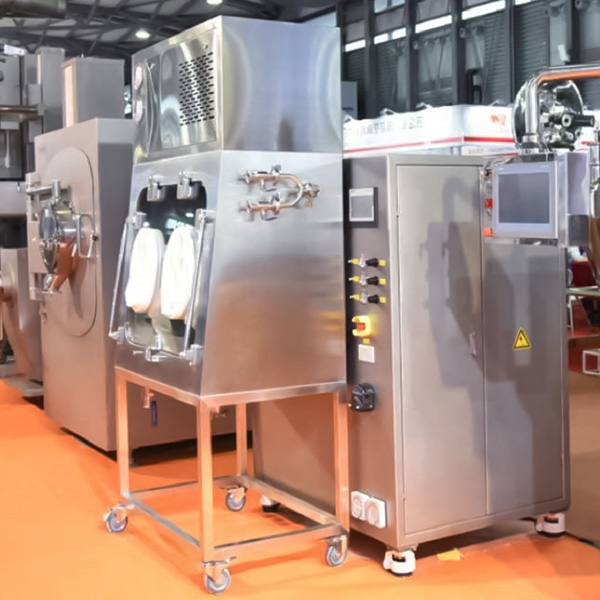

Wonsen Exhibition
