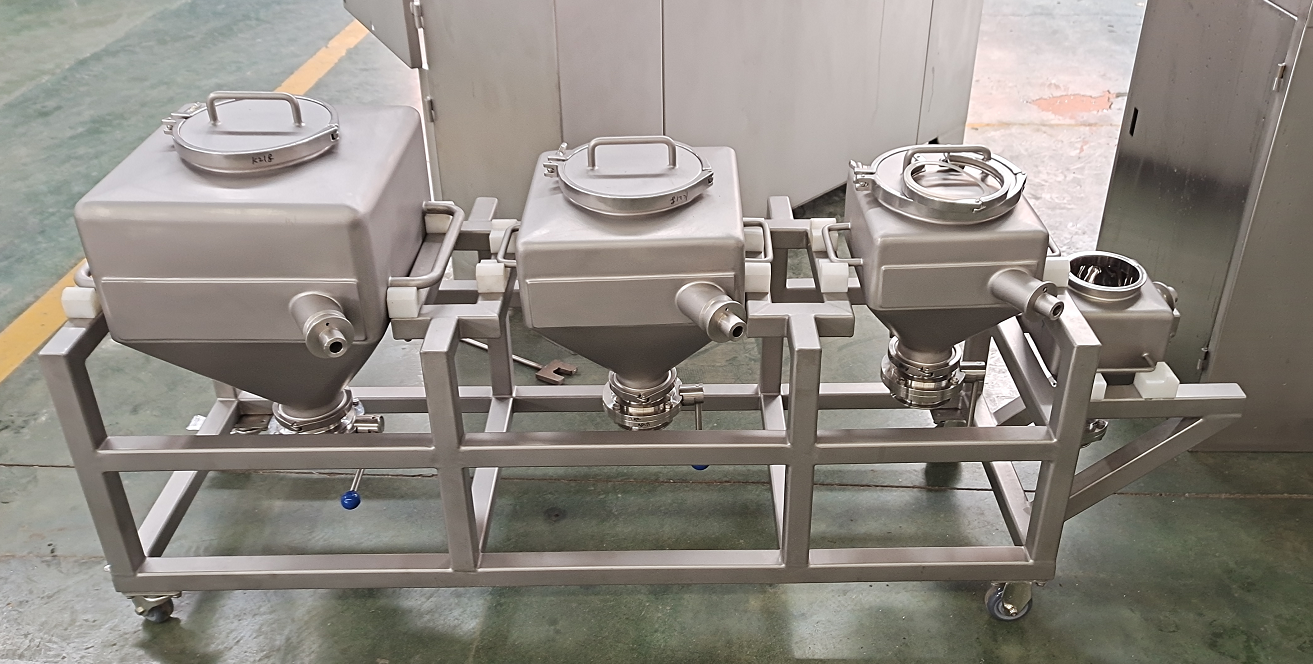

Lab Bin Blender With Movable Base Dry Powder Granule Experimental Mixing Machine For Laboratory R&D Test
- Wonsen
- China
- 120 days
- Always Available
Our movable base Lab Bin Blender is specialized for lab mixing tests of dry powder and granules. With mature mechatronic technology, this experimental blender is widely used in pharmaceutical, chemical and fertilizer laboratories for optimal mixing parameter exploration. Our factory owns complete production lines, sufficient stock for fast delivery, and has supplied numerous R&D institutes worldwide with stable sales volume.
HLS Series Lab Bin Blender With Movable Base Dry Powder Granule Experimental Mixing Machine
Introduction

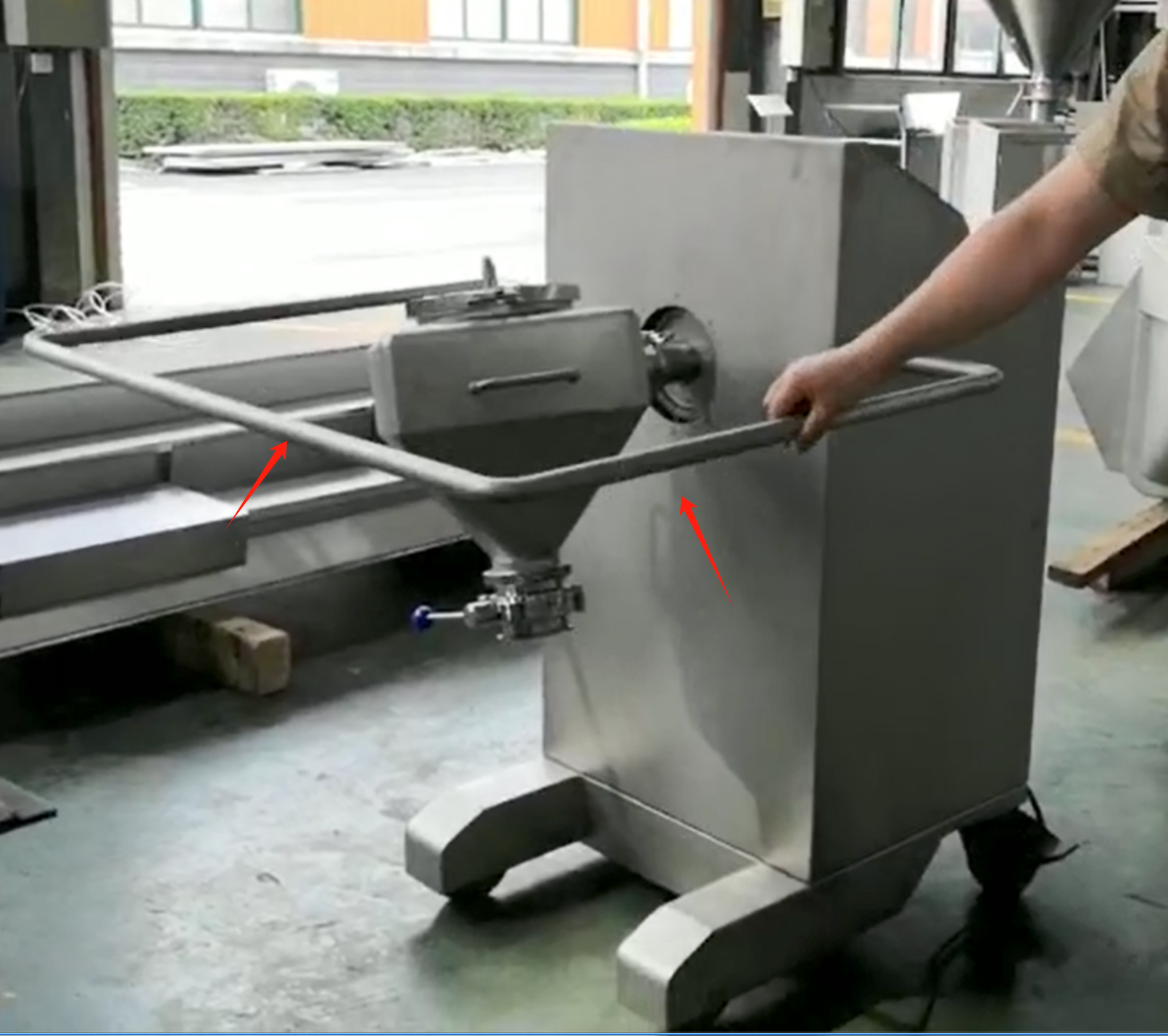

The whole machine is mounted on a movable base, mainly applied for laboratory mixing tests between different dry powders, granules, or powder and granule materials. It is an ideal lab equipment to explore optimal mixing process parameters and an advanced mechatronic experimental blender.
Work principle

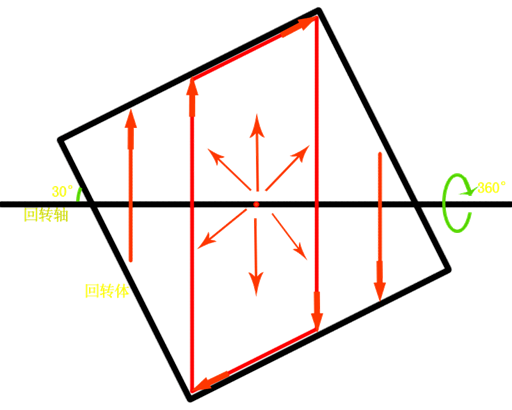

The bin blender is cantilever-mounted on the rotary shaft for 360° rotation. As the symmetric axis of the bin forms an included angle with the rotation arm axis, materials inside the sealed bin move in three-dimensional space with intensive turnover and high-speed shear to achieve superior mixing uniformity.
Features
1) Novel design, compact structure and elegant appearance;
2) Mixing uniformity RSD ≤3% (mixing efficiency up to 99%);
3) Loading coefficient: 30%~80%, interchangable mixing bin design adaptable for various batch sizes;e.
4) Low rotation height, stable running, reliable performance and easy operation;
5) Equipped with vertical positioning discharging device;
6) (Optional) Closed-loop rotating speed control to detect & display actual shaft speed on HMI; speed free from load and motor tolerance interference; abnormal speed alarm for coupling failure;
7) Mixing bin with no dead corners, easy discharging & cleaning, zero cross-contamination, fully compliant with GMP standards.
Structure

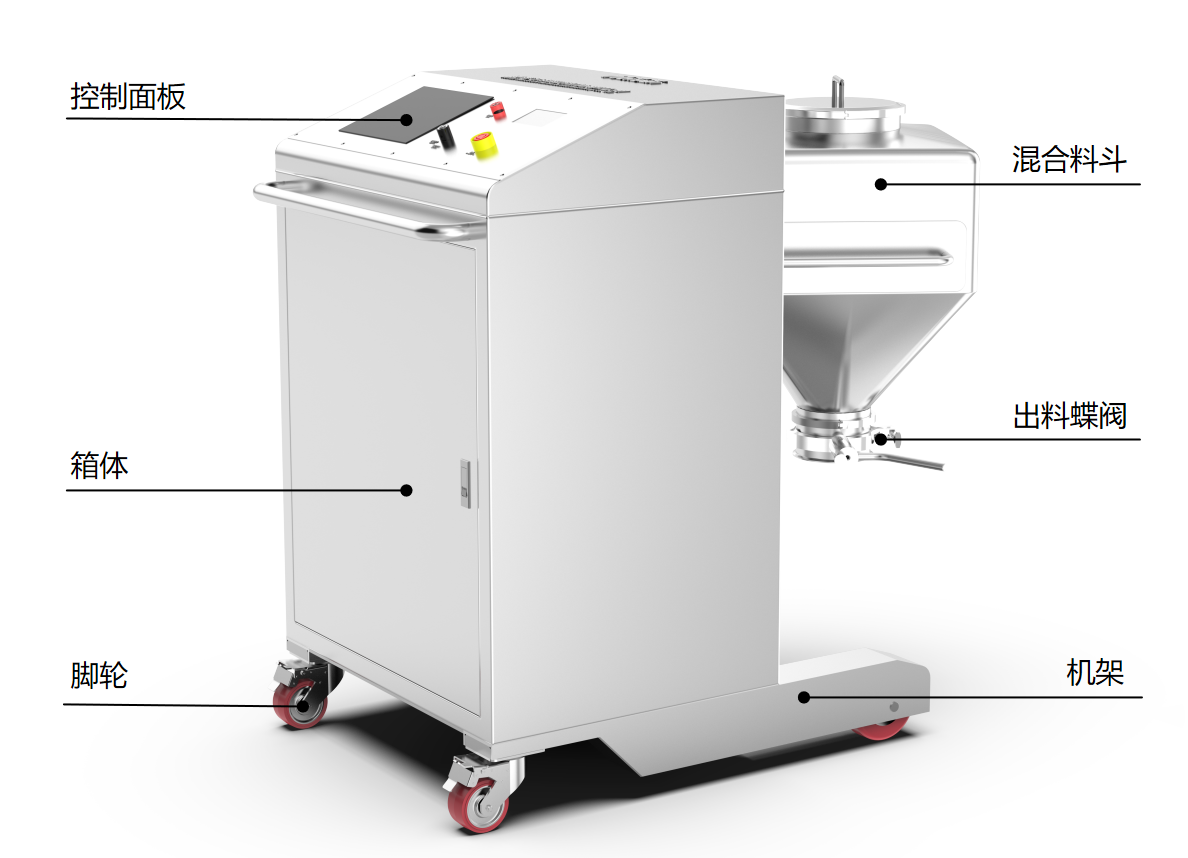

Main components consist of frame, rotary system, mixing bin and control system. Casters are installed at machine bottom for free onsite movement. The rotary system is the core mixing unit driven by low-speed high-torque reduction motor.
